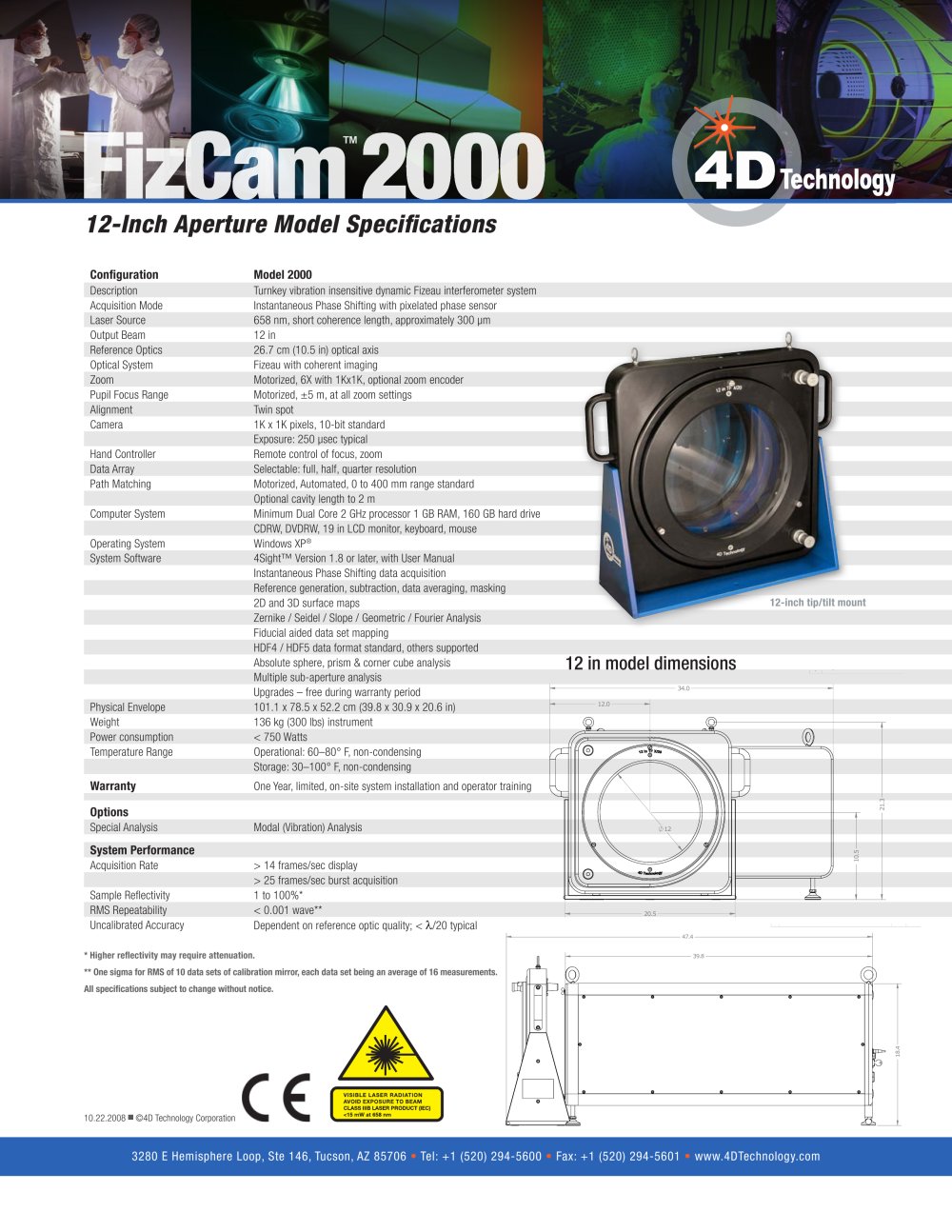

12-Inch Aperture Model Specifications

ConfigurationModel 2000
Description Turnkey vibration insensitive dynamic Fizeau interferometer system Acquisition Mode Instantaneous Phase Shifting with pixelated phase sensor Laser Source658 nm, short coherence length, approximately 300 µm Output Beam12 in Reference Optics26.7 cm (10.5 in) optical axisOptical SystemFizeau with coherent imagingZoomMotorized, 6X with 1Kx1K, optional zoom encoderPupil Focus Range Motorized, ±5 m, at all zoom settings Alignment Twin spotCamera 1K x 1K pixels, 10-bit standardExposure: 250 µsec typicalHand ControllerRemote control of focus, zoom Data Array Selectable: full, half, quarter resolution Path MatchingMotorized, Automated, 0 to 400 mm range standardOptional cavity length to 2 m Computer System Minimum Dual Core 2 GHz processor 1 GB RAM, 160 GB hard driveCDRW, DVDRW, 19 in LCD monitor, keyboard, mouseOperating System Windows XP ® System Software4Sight™ Version 1.8 or later, with User ManualInstantaneous Phase Shifting data acquisition Reference generation, subtraction, data averaging, masking 2D and 3D surface maps Zernike / Seidel / Slope / Geometric / Fourier Analysis Fiducial aided data set mapping HDF4 / HDF5 data format standard, others supported Absolute sphere, prism & corner cube analysis Multiple sub-aperture analysis Upgrades – free during warranty periodPhysical Envelope 101.1 x 78.5 x 52.2 cm (39.8 x 30.9 x 20.6 in) Weight 136 kg (300 lbs) instrument Power consumption 12 in model dimensions -- 34.0 12.0 Warranty
One Year, limited, on-site system installation and operator training Options
21.3 Special AnalysisModal (Vibration) Analysis 12 System Performance
Acquisition Rate > 14 frames/sec display> 25 frames/sec burst acquisitionSample Reflectivity 1 to 100%* RMS Repeatability
