| Product Information | |||||||||||||||||||||

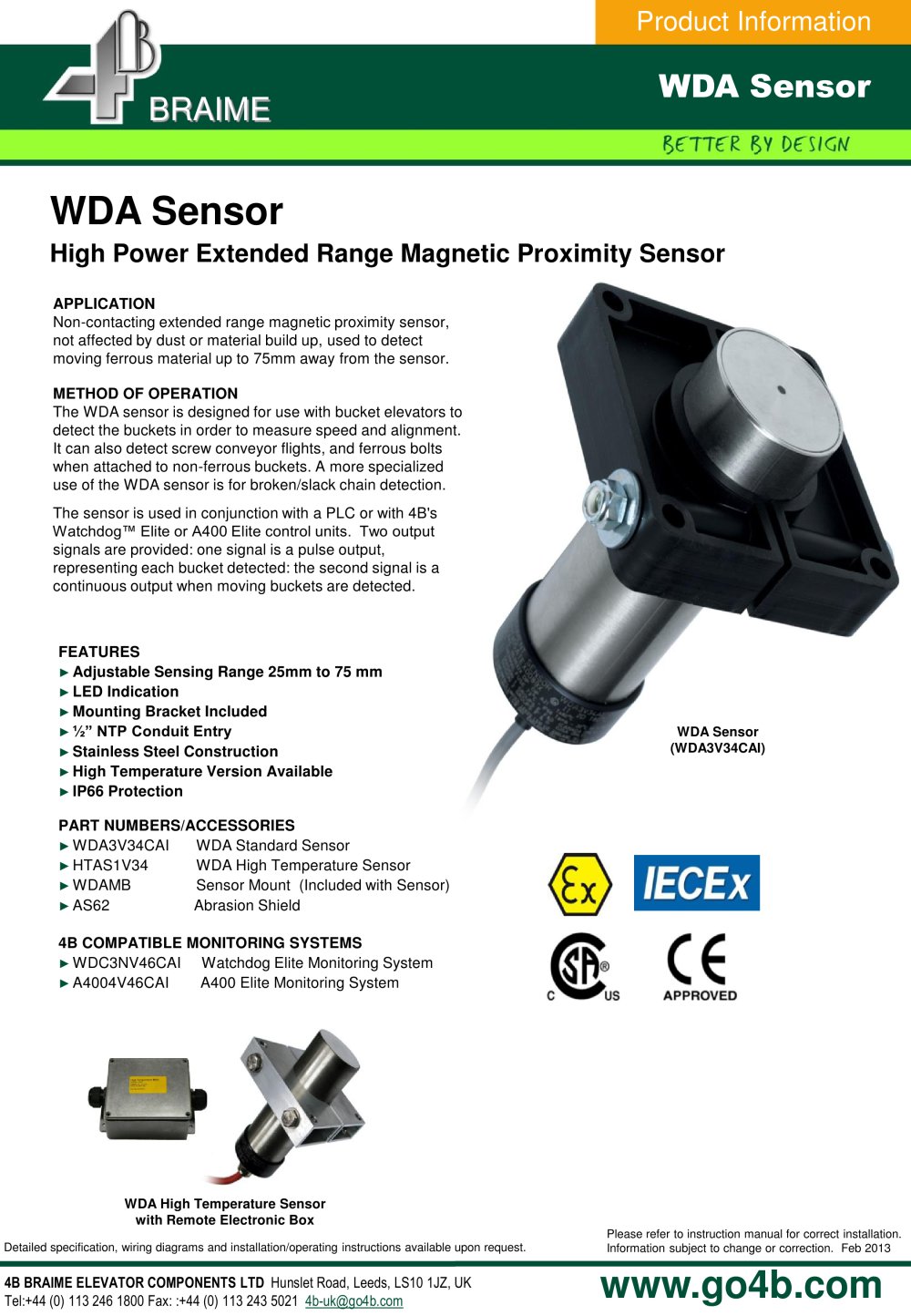

| WDA3 | |||||||||||||||||||||
| COMPONENTS | |||||||||||||||||||||
| NEW ALIGNMENT SENSOR FOR BUCKET ELEVATORS ATEX APPROVED FOR ZONE 20,21 AND 22 | |||||||||||||||||||||
| WD3V34AI • Designed to detect steel elevator buckets, from the side or the front of elevator leg, steel bolts used to attach non-metallic buckets to the elevator belt, by sensing from the back of the belt. | |||||||||||||||||||||
| • Fail Safe.Magnetic sensors,unaffected by dust or product build up, continuously monitor the moving elevator,with visual indication by an LED. | |||||||||||||||||||||
| • Powerful sensors,with 50-100 mm range depend the size of target,easily adjusted on the sensor itself or from the optional independent control unit. | |||||||||||||||||||||
| • Equally suited to elevators with steel or plastic buckets(by using bolt head as target).Can also suit stainless buckets please consult our engineers for more information. | |||||||||||||||||||||
| • Link sensors direct to PLC or-for total security-to independent control unit,,A400 Elite ,B400 Elite or Watchdog Elite itself ATEX approved zone 21 and 22 ATEX Approved Ex II 1D T120° C-IP 65-ZONE 20 | |||||||||||||||||||||
| Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request. | |||||||||||||||||||||
| 4B BRAIME ELEVATOR COMPONENTSLTD Hunslet Road, Leeds, LS10 1JZ,UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | |||||||||||||||||||||
| www.go4b.com | |||||||||||||||||||||
