Product Information

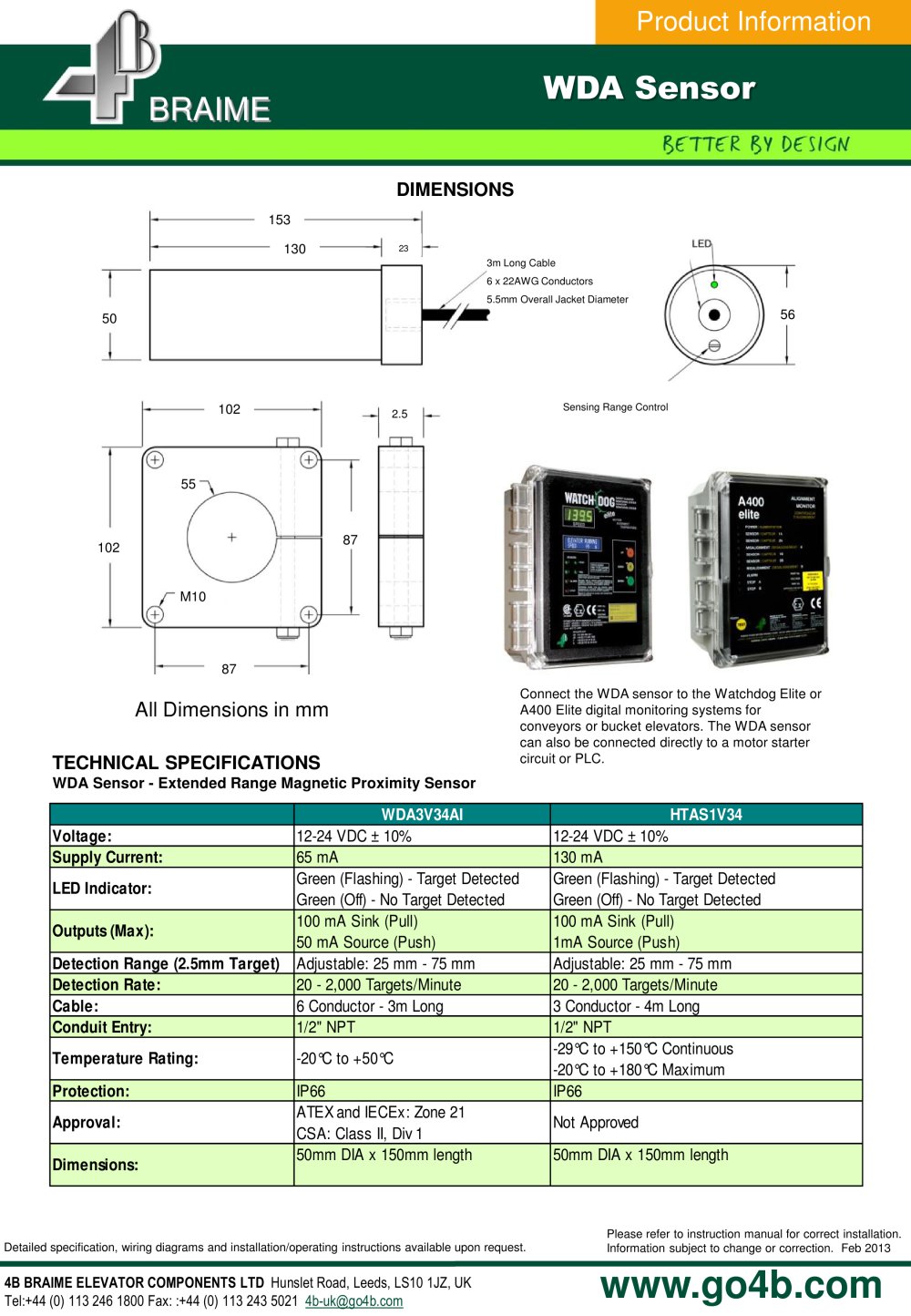

WDA3

CABLE CONNECTIONS

WARNING : Supply Max: 27v dc.

RED

BLACK GREEN

YELLOW/ORANGE BLUE WHITE

MOUNTING

+ Ve supply 12-24 Vdc ■ Ve supply 0V

Earth (Ground) Connected to case

Control 0-24Vdc

Pulsed output,normally low,high when detecting Continuous output,normally high,low when detecting

INTERFACE A400 OR B400 ELITE

Connection diagamm direct to PLC/computer or to relay

+ 24Vdc

Please refer to instruction manual for correct installation. Information subject to change or correction. February 2006.
