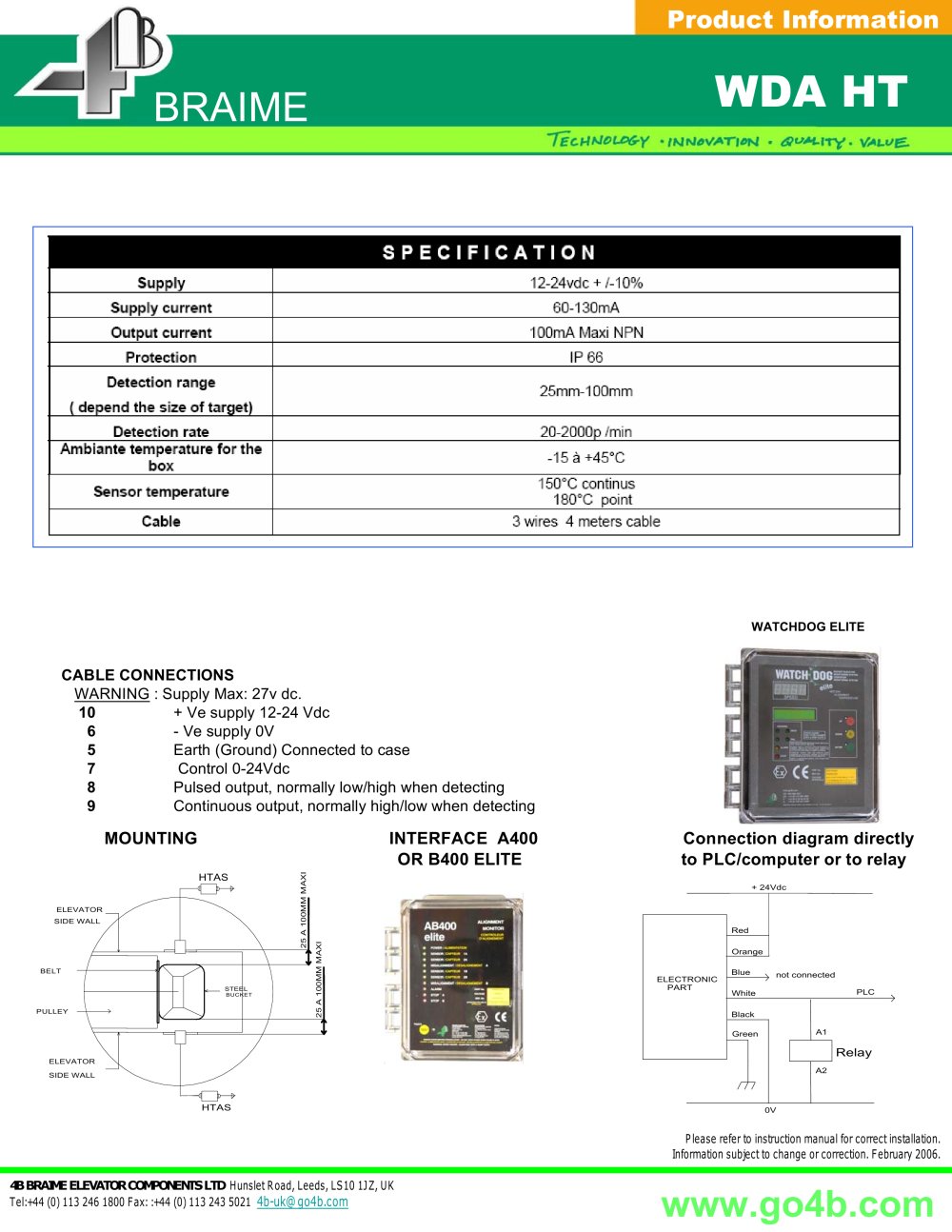

BRAIME

WDA HT

WATCHDOG ELITE CABLE CONNECTIONS WARNING : Supply Max: 27v dc. 10 + Vesupply 12-24 Vdc 6 -Vesupply 0V 5 Earth (Ground) Connected to case 7 Control 0-24Vdc 8 Pulsed output, normally low/high when detecting 9 Continuous output, normally high/low when detecting

MOUNTING INTERFACE A400Connection diagram directlyOR B400 ELITE to PLC/computer or to relay

HTAS + 24Vdc PROFESSIONAL ELEVATOR SIDE WALL Red 25 A 100MM MAXI Orange BELT Blue ELECTRONIC PART not connected STEEL BUCKET White PLC PULLEY 25 A 100MM MAXI Black Green A1 ELEVATOR Relay SIDE WALL A2 HTAS 0V Please refer to instruction manual for correct installation . Information subject to change or correction. February 2006 . 4B BRAIME ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com

www.go4b.com
