| | | Product information | | |
| | | |

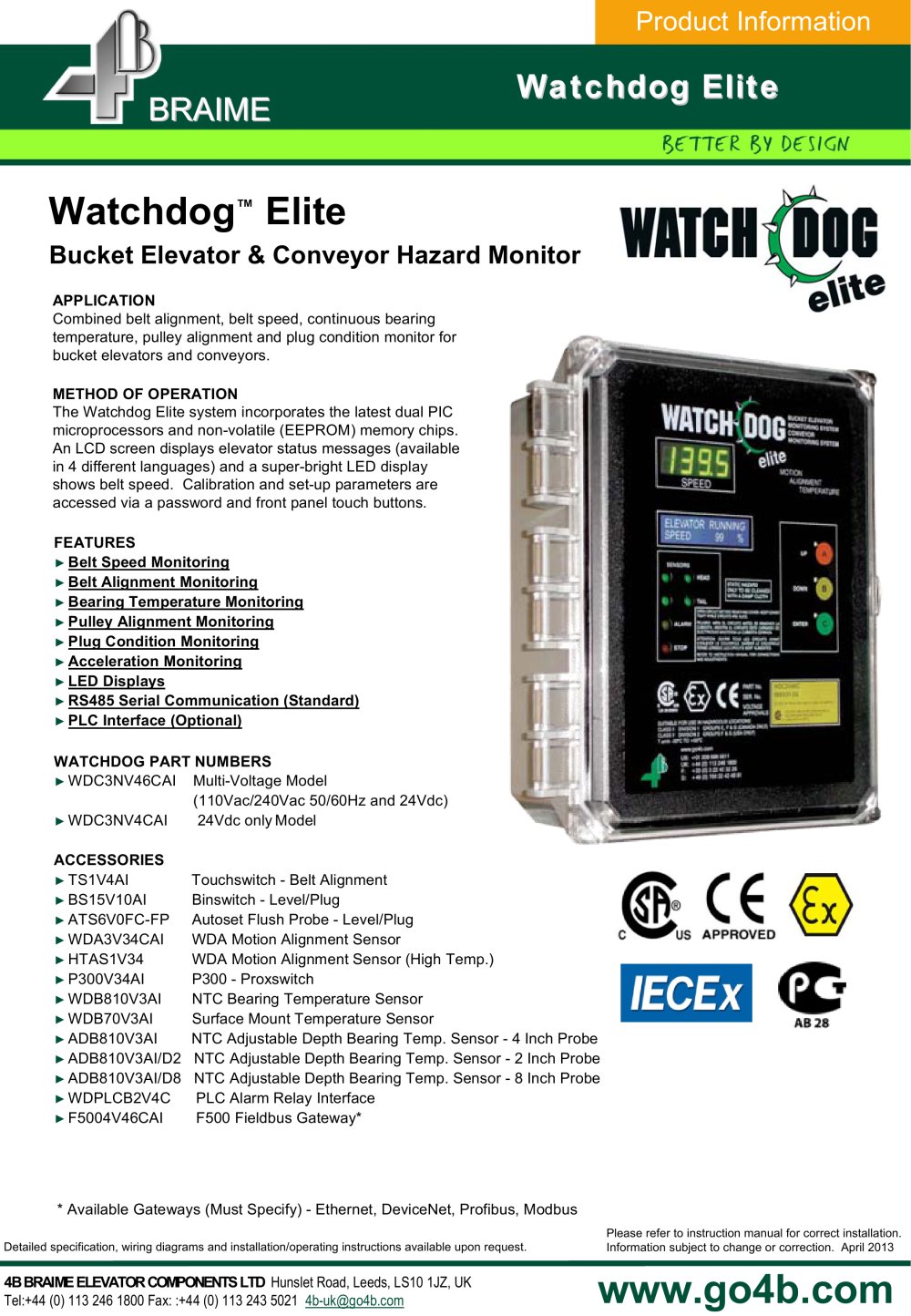

| | | WATCHDOG ELITE | | |
| | | BRAIME | | |
| | | |
| | | |
| | | WATCHDOG ELITE | | |
| | | |
| | | | | |
| | WDC3V4CAI | | Watchdog Elite Control Module | | |
| | | |
| | | |
| | | 12 to 24 DC Ex II 2D T125°C Zone 21 | | |
| | | |
| | | WDC3V46CAI - Watchdog Elite Control Module Multi-voltage: 95 - 250VAC /12-24 DC Ex II 3D T125°C Zone 22 | | |
| | | |
| | | APPLICATION The Watchdog Elite is a multi-function hazard monitor temperature, belt speed & blockage detection. An LCD screen displays elevator status messages (available in 4 different languages) and a super bright LED display shows belt speed. Calibration and set-up parameters are accessed via password protected front panel touch buttons. | | |
| | | Belt Speed Belt Alignment Bearing Temperature Pulley Alignment Blockage Detection Acceleration Monitoring | | |
| | | |
| | | FEATURES .- Clear, consise information displayed in a choice of 4 languages ^ Easy set-up & calibration - password-protected ^ Test program and self-diagnostics - no need to stop the elevator № IP 66, Nema 12 № ATEX, IECEX & CSA Approved | | |
| | | |
| | | ATEX Zones 21 & 22 | | |
| | | |
| | | |
| | | OPTIONS .- Communication via RS485 or PLC Interface Board k F500 Communication Gateway Detailed specifications, wiring diagrams and installation/ operating instructions available immediately upon request. | | |
| | | CLASS 2 div. 2 Groups E,F,G | | |
| | | |
| | | |
| | | Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007. | | |
| | | |
| | | 4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
