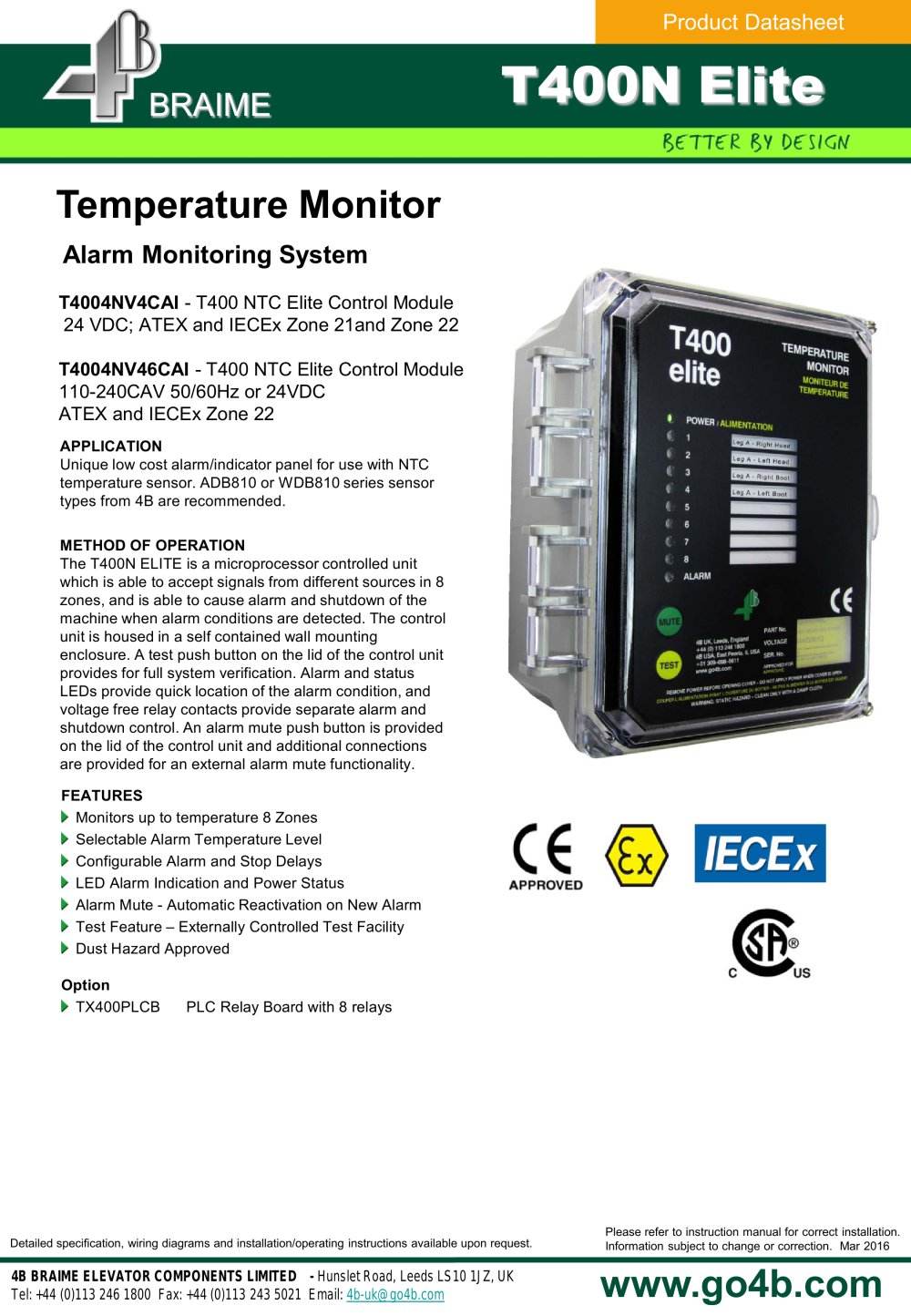

T400 Elite - Bearing Temperature Monitor - 4B Braime Elevator Components - #1

BRAIME

T4004V4CAI - A400 Elite Control Module -12 - 24 DC Ex II 2D T125°C zones 21 & 22

T4004V46CAI - A400 Elite Control Module- 95-250VAC /12-24DC Ex II 3D T125°C zone 22

Senses over-heated bearings and machinery casings to prevent costly downtime and help eliminate the risk of explosions. The T400 ELITE Temperature Monitor uses an electronic control unit, which works in conjunction with PTC temperature sensors to monitor up to 48 bearings. The control unit incorporates 8 separate zones, each of which is able to monitor 1 to 6 individual bearings.

.■ Monitors multiple bearings - 8 individual bearing temperature zones and up to 48 bearings per control unit

v Status lights - control unit LED's indicate hot bearing location, control unit alarm and power status

.- Alarm mute: on panel cover and remote push-button v Test feature: Controlled test facility activated externally t IP 65, Nema 12.

k TX400PLCB: PLC Alarm Interface Board (8 output relays -1 per zone)

v Communication via RS485 PTC Bearing Temperature Sensors (sperate data sheet available)

Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.

Please refer to instruction manual for correct installation. Information subject to change or correction. February 2007.

4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
