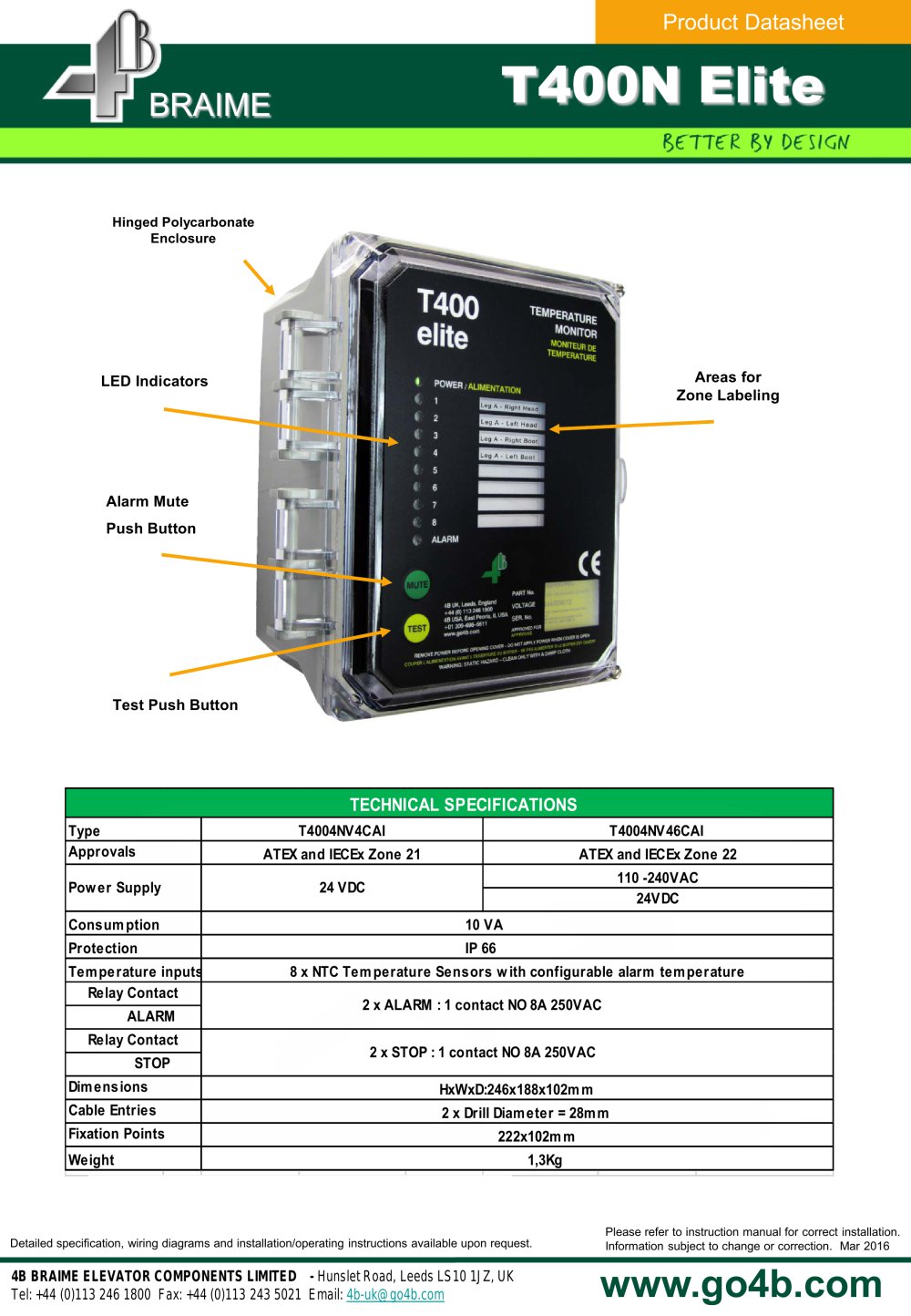

| | | | | | | | | | | | | | | | | | | | | | | | | Product Information | | | | | | | | | | T400 ELITE | | | | | | BRAIME | | | | | | | | | | | | | | | | | | | | | | TECHNICAL SPECIFICATIONS | | | | Type | T4004V4CAI | T4004V46CAI | | | | Approvals | Ex II 3D T125°C Tamb -15°C to +50°C | Ex II 2D T125°C Tamb -15°C to +50°C | | | | BAS03ATEX0674X | BAS03ATEX0674X | | | | Enclosure | Polycarbonate | | | | | | 95 -250VAC | 12 - 24 VDC | | | | 12 - 24 VDC | | | | Consum ption | 10 VA | | | | Protection | IP 66 | | | | Relay Contact | ALARM A :1 contact NO 8A 250VAC | | | | ALARM | | | | Relay Contact | STOP A :1 contact NO 8A 250VAC | | | | STOP | | | | | Dimensions | HxLxP:246x188x102m m | | | | Cable Entries | 2 s dia,28mm | | | | Fixation Points | 222x102mm | | | | Weight | 1,3Kg | | | | | | | | | | | | | | | | | | Please refer to instruction manual for correct installation. Information subject to change or correction. February 2007. | | | | | | | | | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | | | | | www.go4b.com | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
