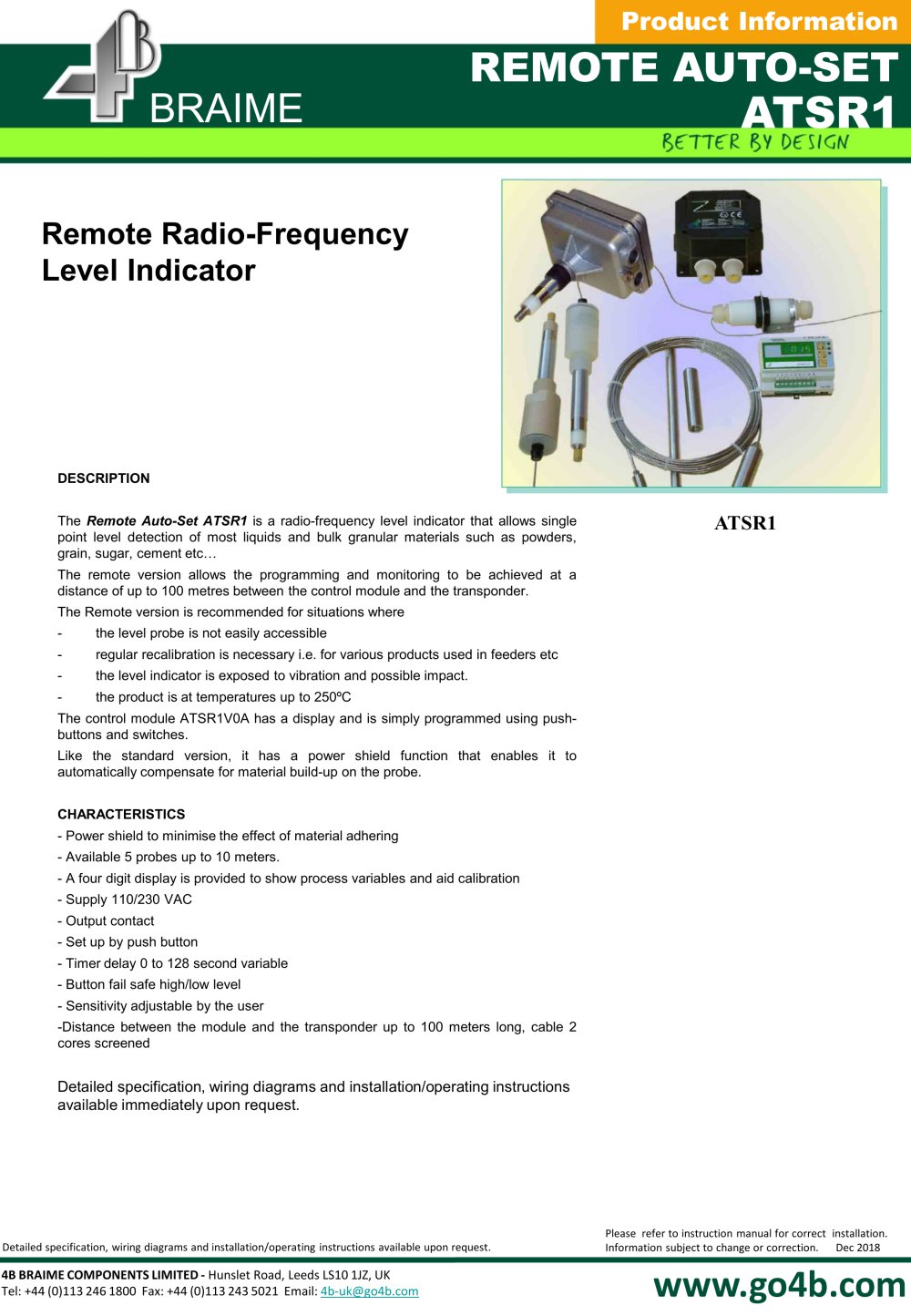

REMOTE AUTO-SE T

SETEM BRAIME

ATSR 1

RemoteRadio-Frequency Level indicator

ATEX-approved for zones 20, 21 & 22

DESCRIPTION The Remote Auto-Set ATSR1 is a radio-frequency level indicator that allows single point level detection of most liquids and bulk granular materials such as powders, grain, sugar, cement, etc…The remote version allows the programming and monitoring to be achieved at a distance of up to 100 metres between the control module and the transponder.The Remote Version is recommended for situations where-the level probe is not easily accessible-regular recalibration is necessary i.e. for various productsused in feeders etc-the level indicator is exposed to vibration and possibleimpact-the product is at temperatures up to 250ºCThe control module ATSR1V0A has a display and is simply programmed using push-buttons and switches.Like the standard version, it has a power shield function that enables it to automatically compensate for material build-up on the probe.

ATSR1 ATEX APPROVEDZONE 20, 21 & 22

CHARACTERISTICS -Power shieldto minimise theaffect of material adhering-Available5 probes up to 10 meters. -A four digit display is providedto show processvariables and aid calibration-Supply110/230 VAC -Output contact -Set up by push button -Timer delay0 to 128 second variable -Button fail safe high/low level -Sensitivity adjustableby theuser -Distance between themodule and thetransponderup to 100 meterslong, in 2 core screened cable

NEW

PRODUCT

Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.

Please refer to instruction manual for correct installation . Information subject to change or correction. June 2006 . 4B BRAIME ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
