Product Information

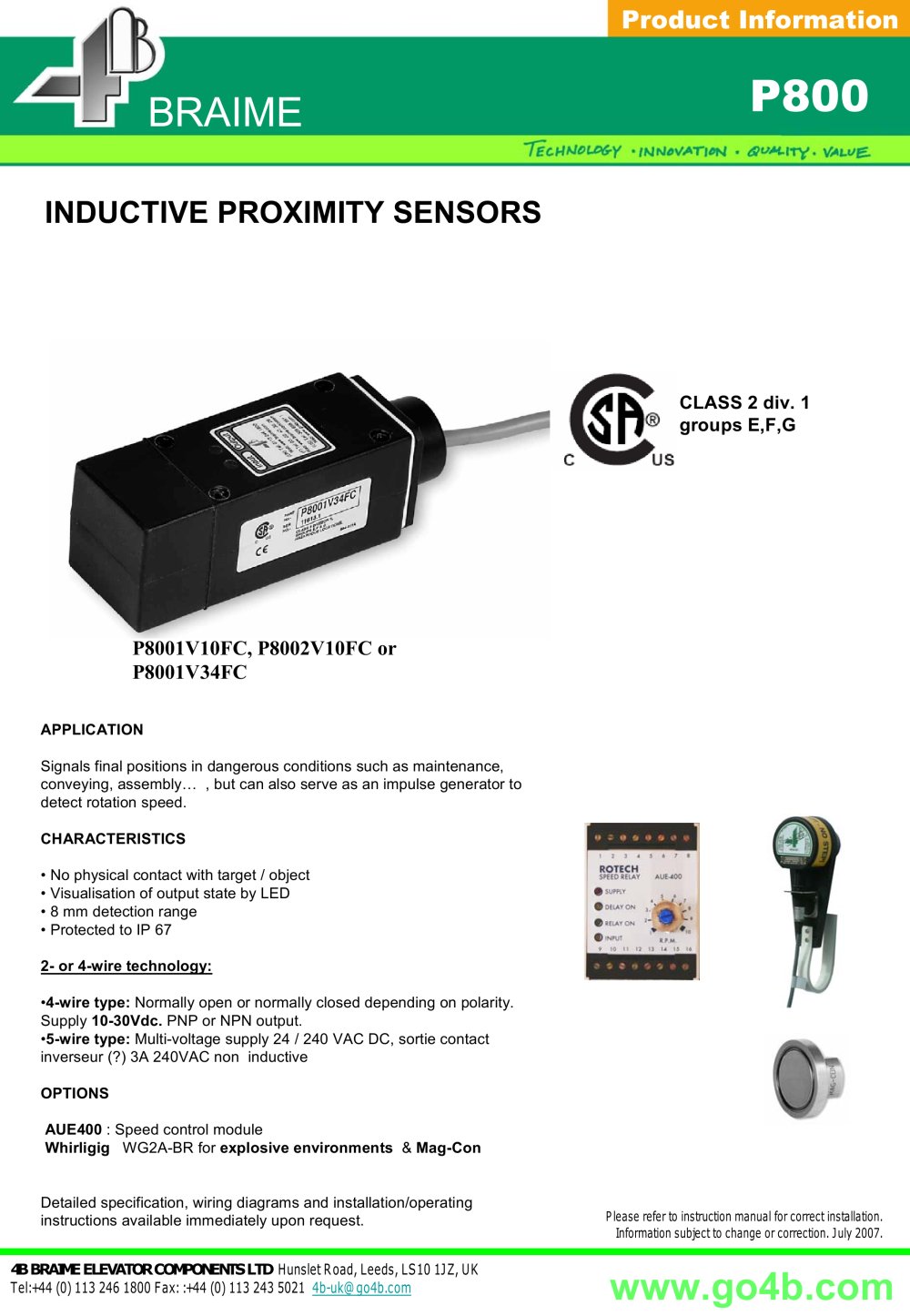

P800 - Inductive Proximity Sensor - 31528 BRAIME P800

INDUCTIVE PROXIMITY SENSORS

CLASS 2 div. 1 groups E,F,G

P8001V10FC, P8002V10FC or P8001V34FC

APPLICATION Signalsfinal positions in dangerousconditions suchas maintenance, conveying, assembly…, but canalsoserve as an impulse generatorto detectrotation speed. CHARACTERISTICS ?No physicalcontact withtarget/ object?Visualisation ofoutput state by LED?8 mm detectionrange?Protectedto IP 67 2-or 4-wire technology: ? 4-wire type: Normallyopen or normallycloseddependingon polarity. Supply 10-30Vdc. PNP or NPN output.? 5-wire type: Multi-voltagesupply24 / 240 VAC DC, sortie contact inverseur (?) 3A 240VAC non inductive OPTIONSAUE400 : Speed control module Whirligig WG2A-BR for explosive environments & Mag-Con Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.
Please refer to instruction manual for correct installation.Information subject to change or correction. July 2007. 4B BRAIME ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
