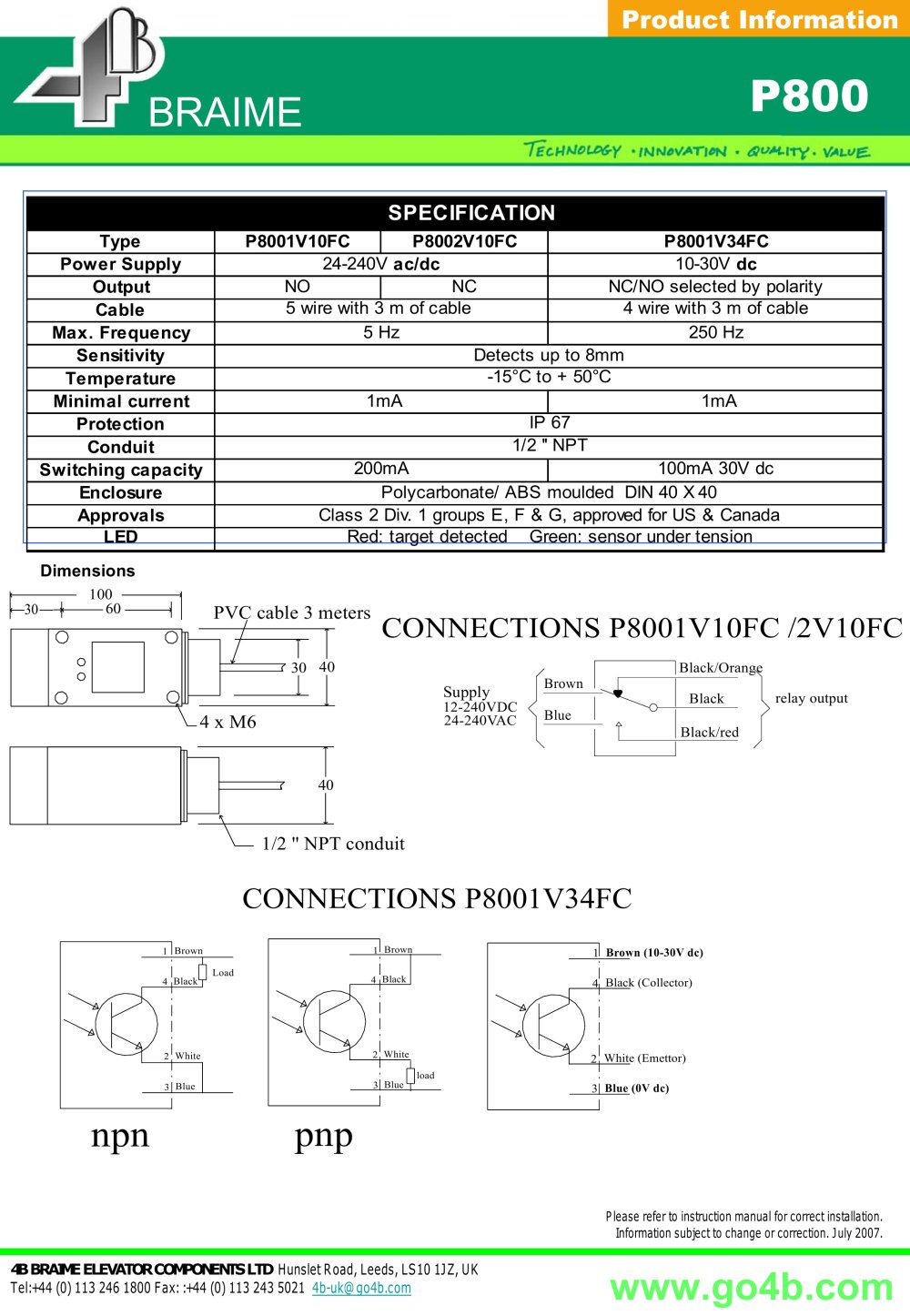

| | | Product Information P800 | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | SPECIFICATION | | | | Type | P8001V10FC | P8002V10FC | P8001V34FC | | | | | 24-240V ac/dc | 10-30V dc | | | | Output | NO | NC | NC/NO selected by polarity | | | | Cable | 5 wire with 3 m of cable | 4 wire with 3 m of cable | | | | Max. Frequency | 5 Hz | 250 Hz | | | | Sensitivity | Detects up to 8mm | | | | Temperature | -15°C to + 50°C | | | | Minimal current | 1mA | 1mA | | | | Protection | IP 67 | | | | Conduit | 1/2 '' NPT | | | | Switching capacity | 200mA | 100mA 30V dc | | | | Enclosure | Polycarbonate/ ABS moulded DIN 40 X 40 | | | | Approvals | Class 2 Div. 1 groups E, F & G, approved for US & Canada | | | | LED | | | | | | | | | | | | |
| | | |
| | | Dimensions | | |
| | | |
| | | 100 -— 60- | | |
| | | | | |
| | | -30- | | |
| | | PVC cable 3 meters | | |
| | | |
| | | | |
| | | CONNECTIONS P8001V10FC /2V10FC Black/Orange | | |
| | | |
| | | | | |
| | | | | |
| | | 30 40 | | |
| | | |
| | | |
| | | |
| | | Brown | | |
| | | Supply 12-240VDC 24-240VAC | | |
| | | |
| | | relay output | | |
| | | Black | | |
| | | |
| | | |
| | | |
| | | Blue | | |
| | | -4 x M6 | | |
| | | |
| | | |
| | | Black/red | | |
| | | |
| | | |
| | | 40 | | |
| | | |
| | | 1/2 NPT conduit | | |
| | | |
| | | CONNECTIONS P8001V34FC | | |
| | | |
| | | 1 I Brown | | |
| | | 1 Brown (10-30V dc) 4 Black (Collector) | | |
| | | |
| | | L kp Load | | |
| | | |
| | | |
| | | I | | |
| | | |
| | | 2 White (Emettor) 3 Blue (0V dc) | | |
| | | |
| | | npn | | pnp | | |
| | | |
| | | Please refer to instruction manual for correct installation. Information subject to change or correction. July 2007. | | |
| | | |
