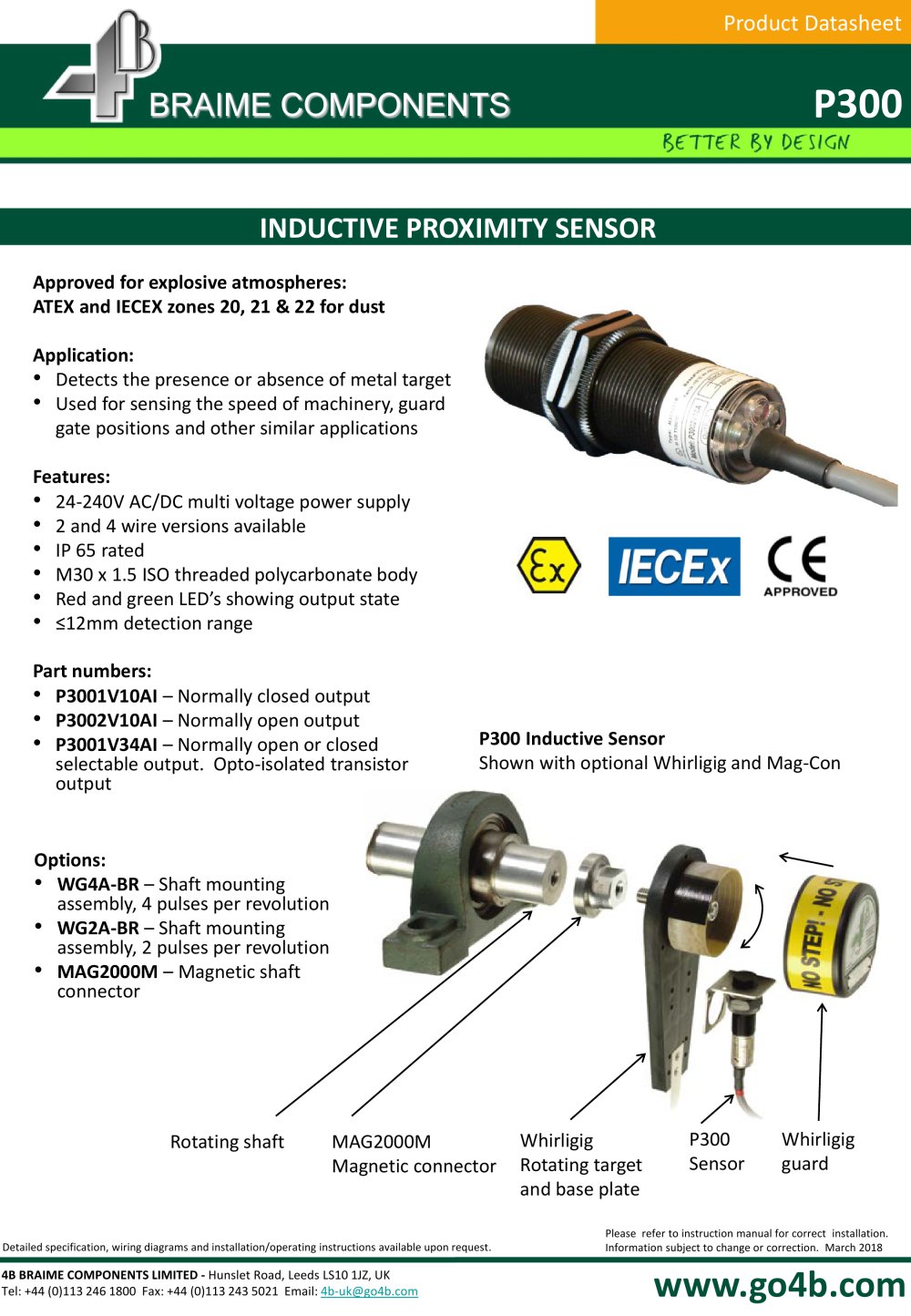

BRAIME P300

INDUCTIVE PROXIMITY DETECTION

Approvedfor dustexplosive atmospheresZones 20, 21 & 22

APPLICATION Detectsthe presenseor absenseof materials. Is usedfor monitoring the speed of machineryvia a speed module or SUPPLIER OF PLC FEATURES

P3001V10AI or P3002V10AI

Multi-voltage power supply24-240V AC/DC 2-wire–PLC compatible Protectedto IP 65 M30 x 1.5 ISO threadedbody for mounting& adjustment

ATEX-ApprovedEx II 1D T100

LEDsshowingoutput state

° C-IP 65-ZONE 20

12mm detectionrange ATEX & IECExcertifiedaccordingto normEN 50281-1-1Ex II 1D T100°C IP65 –ZONE 20 PART NUMBERS/OPTIONS P3001V10AI –Contact NormallyOpen P3002V10AI –Contact NormallyClosed WG1-8A-BR –Whirligigcombinedtarget/bracket/guard CONNECTIONS
Noir Charge L/+V 24-240 V ac/dc Bleu N/0V Noir L/+V Machine ShaftTo be Monitored Mag-ConTargetGuard BracketP300 Sensor specifications 24-240 V Bleu ac/dc Charge N/0V Noir L/+V Base Plate 24-240 V Bleu ac/dc N/0V P300 Manufacturers of inductive sensor shown with optional Whirligig and Mag-Con (Used for simple and reliable installation on shaft speed monitoring applications) Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request. Please refer to instruction manual for correct installation.Information subject to change or correction. June 2006. 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
