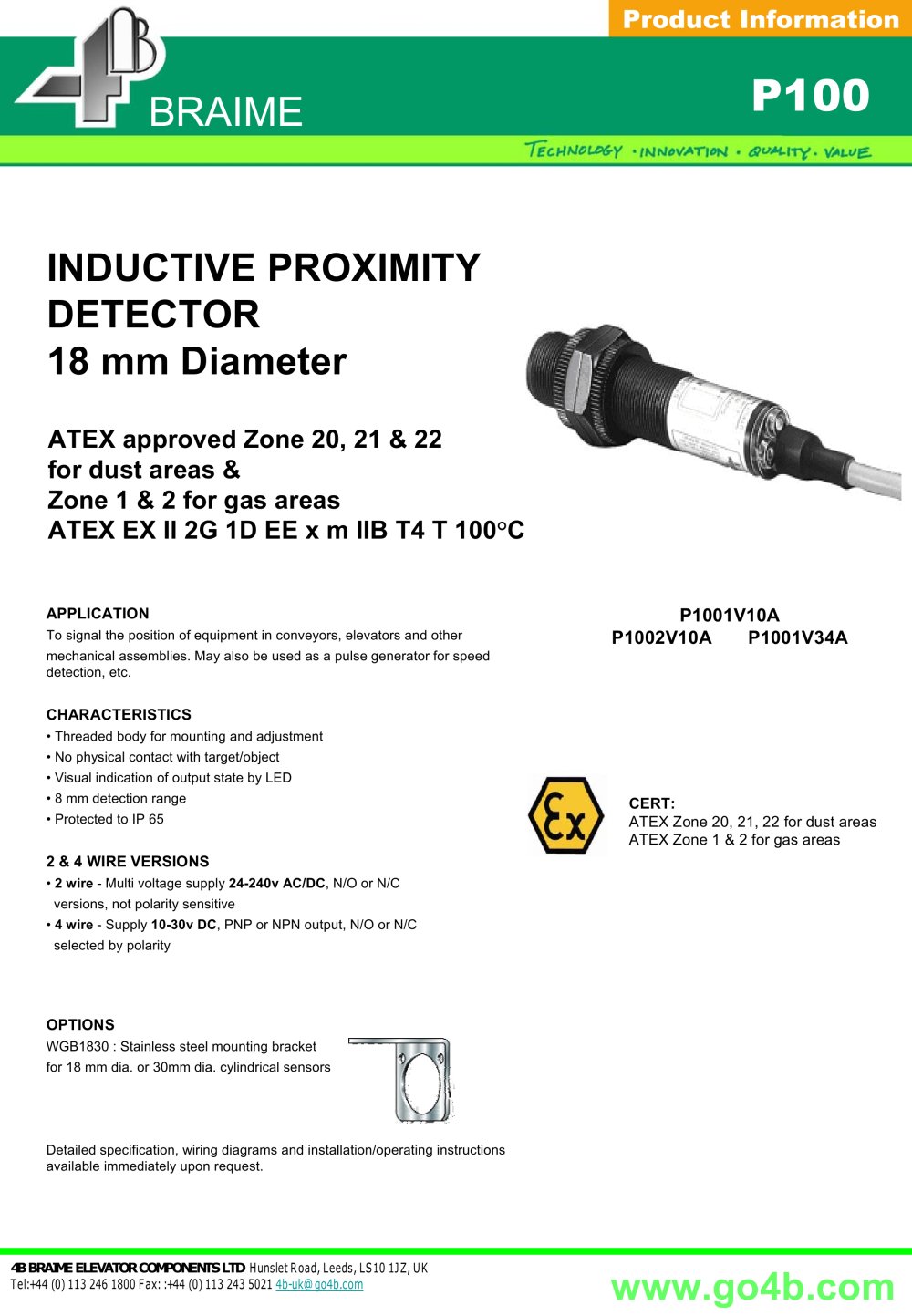

BRAIME P100

INDUCTIVE PROXIMITY DETECTOR18 mm Diameter

ATEX approved Zone 20, 21 & 22 for dust areas & Zone 1 & 2 for gas areasATEX EX II 2G 1D EE x m IIB T4 T 100 ° C

APPLICATION

P1001V10A P1002V10A P1001V34A

To signal the position of equipment in industrial conveyors, elevators and othermechanical assemblies. May also be used as a pulse generator forspeed detection, etc.

CHARACTERISTICS

•Threaded body for mounting and adjustment?No physical contact with target/object ?Visual indication of output state by LED?8 mm detection range?Protected to IP 65

CERT: ATEX Zone 20, 21, 22 for dust areas ATEX Zone 1 & 2 for gas areas 2 & 4 WIRE VERSIONS

? 2 wire -Multi voltage supply 24-240v AC/DC , N/O or N/Cversions, not polarity sensitive? 4 wire -Supply 10-30v DC , PNP or NPN output, N/O or N/Cselected by polarity

OPTIONS

WGB1830: Stainless steel mounting bracket for 18 mm dia. or 30mm dia. cylindrical sensorsDetailedspecification, wiring diagrams and installation/operating instructions available immediately upon request. Please refer to instruction manual for correct installation . Information subject to change or correction. June 2006 . 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
