| Product Information | ||||||||||||||||||||||||||

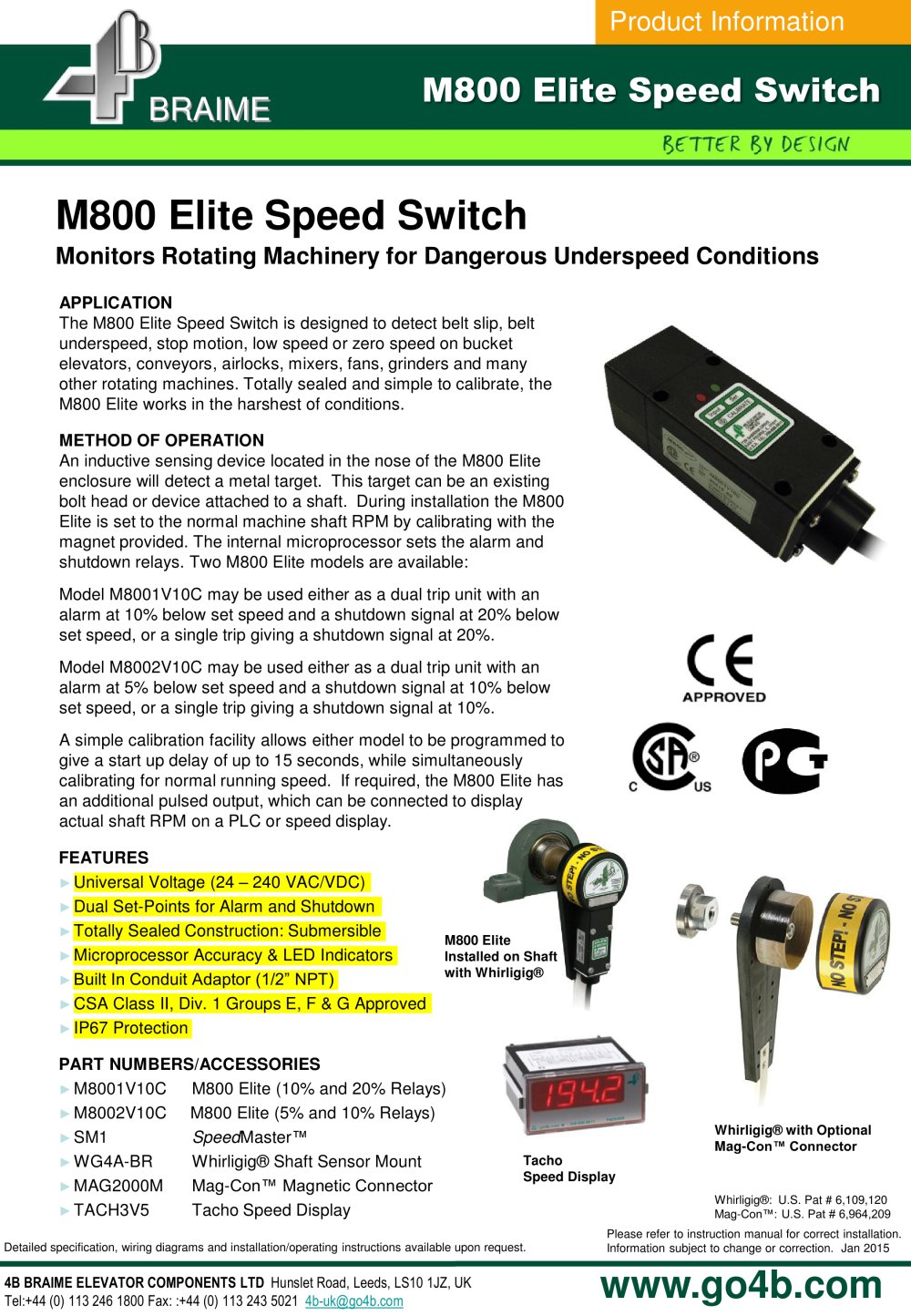

| M800 | ||||||||||||||||||||||||||
| ~7ecríHt>t¿>tS-Y */N*toVATi«isí • ¿PM*t-iTy. Valve. | ||||||||||||||||||||||||||
| M800 SPEEDSWITCH | ||||||||||||||||||||||||||
| APPLICATION The M800 Speedswitch protects rotating equipment from dangerous underspeed conditions (elevator legs, conveyors, grinders, mixers, fans, etc.) The Inductive sensing devise, located in the nose of the M800 detects a rotating metal target on a shaft. If the machine speed falls by 10% or 20% below its nominal RPM, the monitor provides output signals for alarm and/or shutdown of the machinery. FEATURES ■ Dual set points -Alarm at 10% underspeed; Stop at20% underspeed k Dust Proof and Watertight - IP67 k Speed range -10 to 3600 PPM ^ Magnetic calibration of the micro-processor - start-up delay - normal running speed .■ User adjustable start-up delay: 0-30 seconds | ||||||||||||||||||||||||||
| M800 SPEEDSWITCH | ||||||||||||||||||||||||||
| CLASS 2 Div. 1 Groups E, F & G (US & Canada) | ||||||||||||||||||||||||||
| PART NUMBERS/ACCESSORIES ÉM8001V1FC -110V AC p'M8001V2FC -220V AC ÉM8001V4FC -24V DC № Whirligig & Mag-Con - combined target/bracket/gaurd k TACH1V5 - Tachometer Display | ||||||||||||||||||||||||||
| Detailed specifications, wiring diagrams and installation / operating instructions available immediately upon request. | ||||||||||||||||||||||||||
| Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007. | ||||||||||||||||||||||||||
| 4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | ||||||||||||||||||||||||||
| www.go4b.com | ||||||||||||||||||||||||||
