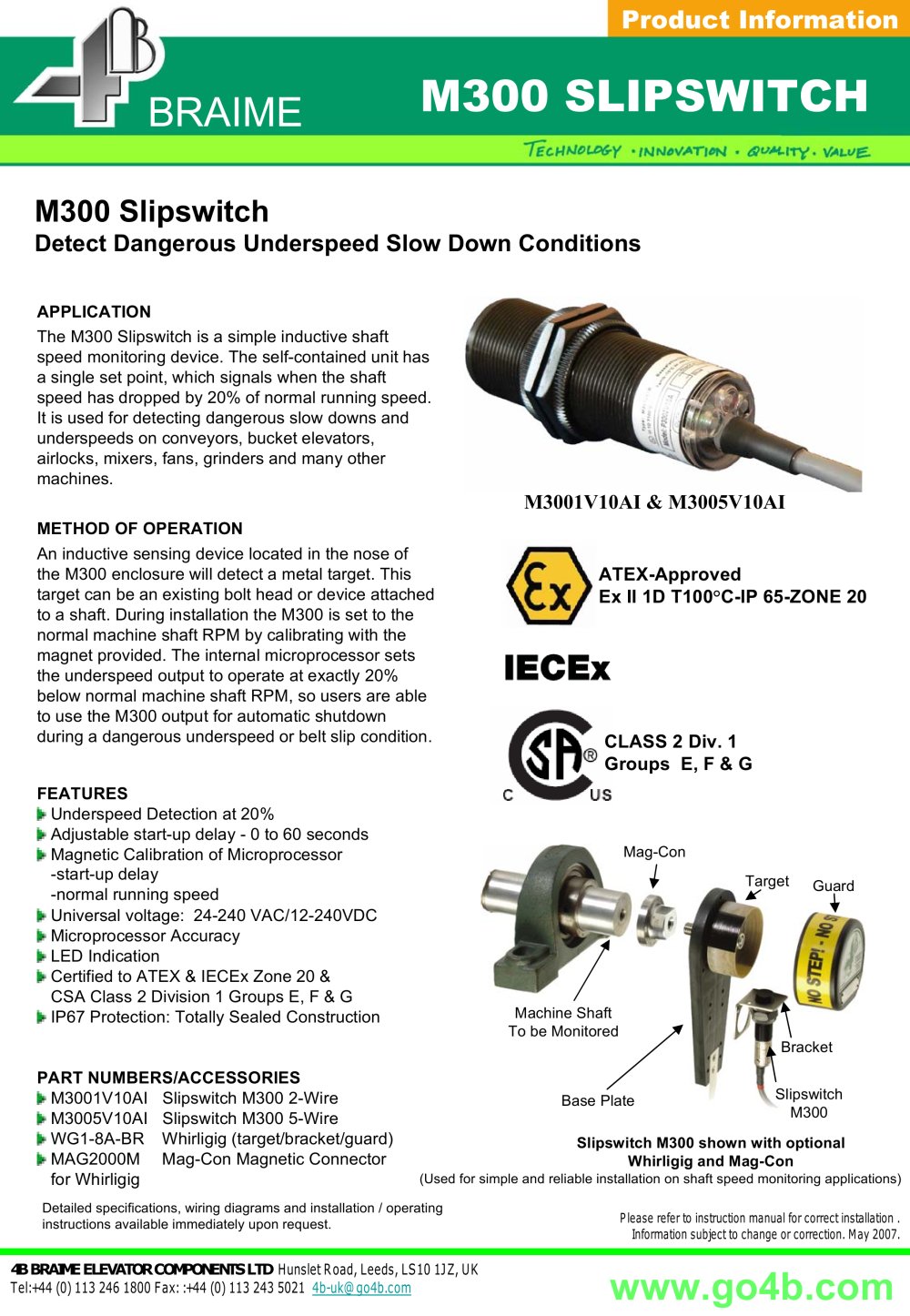

| | | Product Information | | |
| | | |
| | | M300 SLIPSWITCH | | |
| | | BRAIME | | |
| | | |
| | | |
| | | TectìUfLOtS-Y */N*toVATÌ«isi • ¿PM*t-iTy. valve | | |
| | | |
| | | M300 Slipswitch Detect Dangerous Underspeed Slow Down Conditions | | |
| | | |
| | | APPLICATION The M300 Slipswitch is a simple inductive shaft speed monitoring device. The self-contained unit has a single set point, which signals when the shaft speed has dropped by 20% of normal running speed. It is used for detecting dangerous slow downs and underspeeds on conveyors, bucket elevators, airlocks, industrial mixers, industrial fans, industrial grinders and many other machines. METHOD OF OPERATION An inductive sensing device located in the nose of the M300 enclosure will detect a metal target. This target can be an existing bolt head or device attached to a shaft. During installation the M300 is set to the normal machine shaft RPM by calibrating with the magnet provided. The internal microprocessor sets the underspeed output to operate at exactly 20% below normal machine shaft RPM, so users are able to use the M300 output for automatic shutdown during a dangerous underspeed or belt slip condition. | | |
| | | M3001V10AI & M3005V10AI | | |
| | | |
| | | ATEX-Approved Ex II 1D T100°C-IP 65-ZONE 20 | | |
| | | |
| | | CLASS 2 Div. 1 Groups E, F & G | | |
| | | |
| | | |
| | | FEATURES ^ Underspeed Detection at 20% ^ Adjustable start-up delay - 0 to 60 seconds ¥ Magnetic Calibration of Microprocessor -start-up delay -normal running speed k Universal voltage: 24-240 VAC/12-240VDC ^ Microprocessor Accuracy ^ LED Indication № Certified to ATEX & lECEx Zone 20 & CSA Class 2 Division 1 Groups E, F & G k IP67 Protection: Totally Sealed Construction | | |
| | | Mag-Con | | |
| | | |
| | | Target Guard | | |
| | | |
| | | Machine Shaft To be Monitored | | |
| | | |
| | | |
| | | PART NUMBERS/ACCESSORIES | | |
| | | |
| | | Slipswitch M300 | | |
| | | M3001V10AI ^M3005V10AI fcWG1-8A-BR ï MAG2000M for Whirligig | | Slipswitch M300 2-Wire Slipswitch M300 5-Wire Whirligig (target/bracket/guard) Mag-Con Magnetic Connector | | |
| | | Base Plate | | |
| | | |
| | | |
| | | Slipswitch M300 shown with optional Whirligig and Mag-Con for simple and reliable installation on shaft speed monitoring applications) Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007. | | |
| | | |
| | | (Used | | |
| | | |
| | | |
| | | Detailed specifications, wiring diagrams and installation / operating instructions available immediately upon request. | | |
| | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
