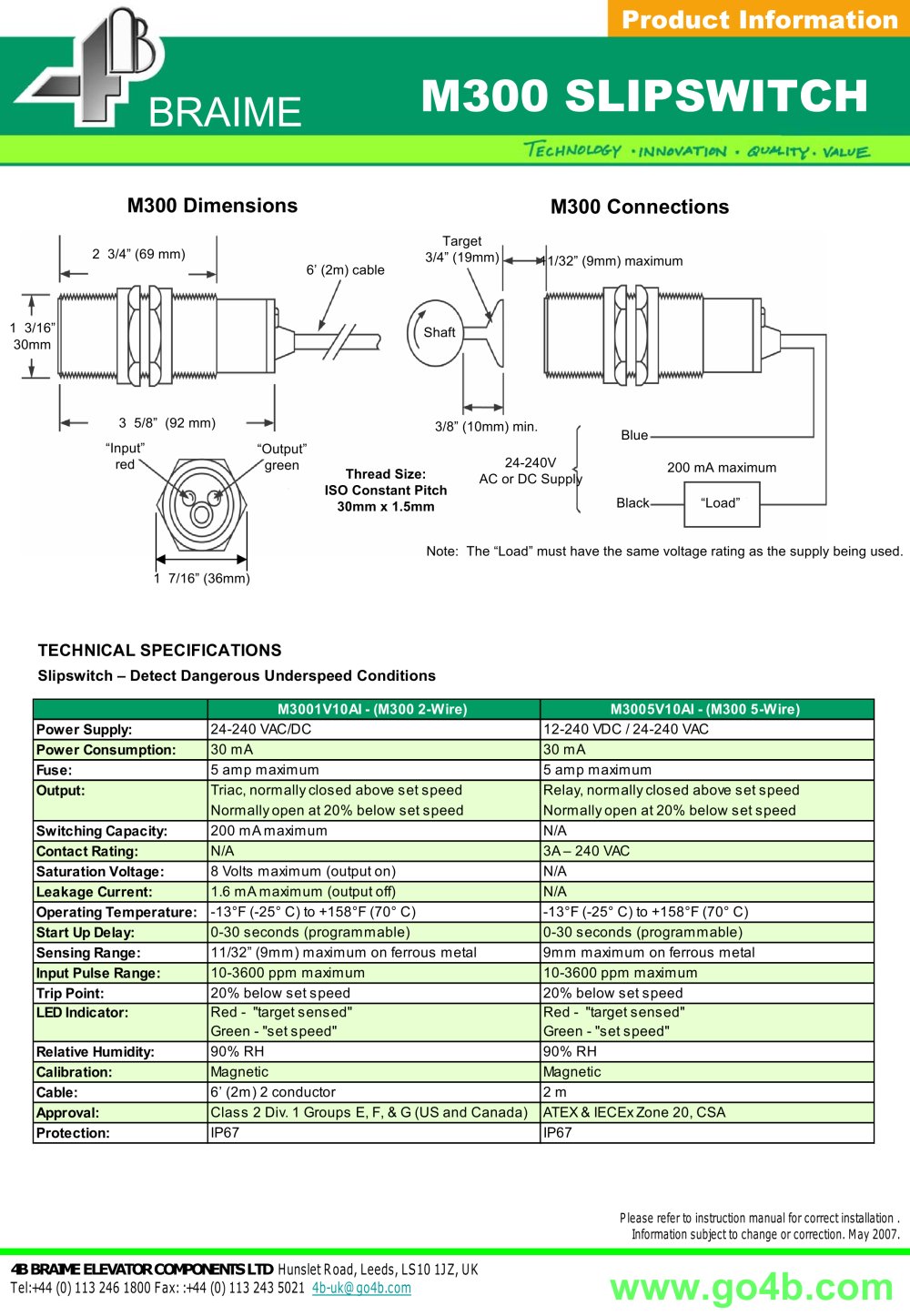

Product Information

M300 SLIPSWITCH

BRAIME

M300 Dimensions

2 3/4" (69 mm) /"LH

M300 Connections

11/32" (9mm) maximum

flu

Target 3/4" (19mm)

6' (2m) cable

1 3/16" 30mm

3/8" (10mm) min.

Blue

24-240V AC or DC Supply

200 mA maximum

Thread Size: ISO Constant Pitch 30mm x 1.5mm

Black

"Load"

Note: The "Load" must have the same voltage rating as the supply being used.

1 7/16" (36mm)

TECHNICAL SPECIFICATIONS

Slipswitch - Detect Dangerous Underspeed Conditions


	M3001V10AI - (M300 2-Wire)
Power Supply:	24-240 VAC/DC	12-240 VDC / 24-240 VAC
Power Consumption:	30 mA	30 mA
Fuse:	5 amp maximum	5 amp maxmum
Output:	Triac, normally closed above set speed	Relay, normally closed above set speed
	Normally open at 20% below set speed	Normally open at 20% below set speed
Switching Capacity:	200 mAmaxmum	N/A
Contact Rating:	N/A	3A - 240 VAC
Saturation Voltage:	8 Volts maxmum (output on)	N/A
Leakage Current:	1.6 mA maxmum (output off)	N/A
Operating Temperature:	-13°F (-25° C) to +158°F (70° C)	-13°F (-25° C) to +158°F (70° C)
Start Up Delay:	0-30 seconds (programmable)	0-30 seconds (programmable)
Sensing Range:	11/32" (9mm) maximum on ferrous metal	9mm maxmum on ferrous metal
Input Pulse Range:	10-3600 ppm maxmum	10-3600 ppm maxmum
Trip Point:	20% below set speed	20% below set speed
LED Indicator:	Red - "target sensed"	Red - "target sensed"
	Green - "set speed"	Green - "set speed"
Relative Humidity:	90% RH	90% RH
Calibration:	Magnetic	Magnetic
Cable:	6' (2m) 2 conductor	2 m
Approval:	Class 2 Div. 1 Groups E, F, & G (US and Canada)	ATEX & lECEx Zone 20, CSA
Protection:	IP67	IP67

Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007.

4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com

www.qo4D.com
