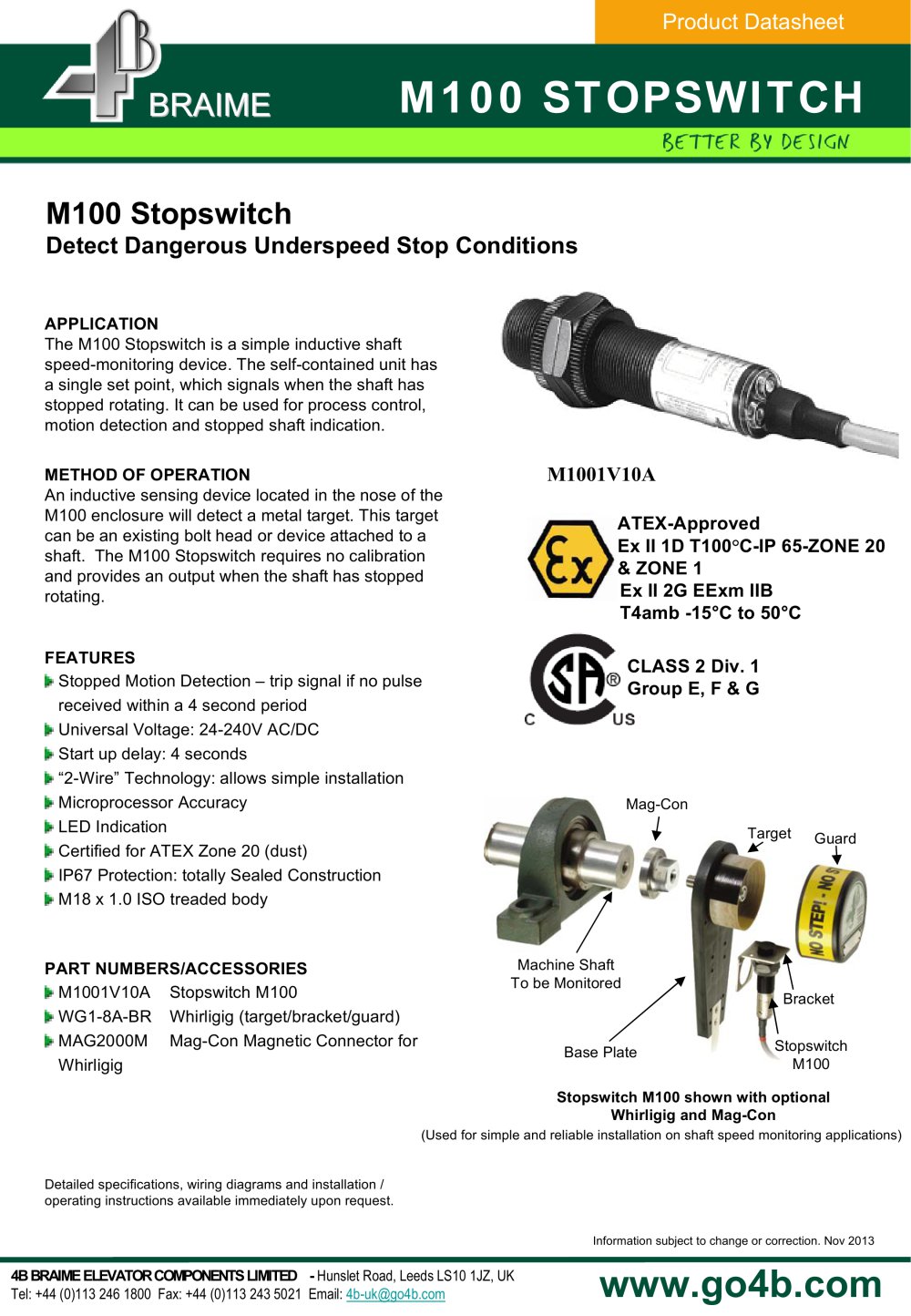

M100 Stopswitch - 4B Braime Elevator Components - #1

BRAIME

The M100 Stopswitch is a simple inductive shaft speed-monitoring device. The self-contained unit has a single set point, which signals when the shaft has stopped rotating. It can be used for process control, motion detection and stopped shaft indication.

An inductive sensing device located in the nose of the M100 enclosure will detect a metal target. This target can be an existing bolt head or device attached to a shaft. The M100 Stopswitch requires no calibration and provides an output when the shaft has stopped rotating.

.■ Stopped Motion Detection - trip signal if no pulse

received within a 4 second period t Universal Voltage: 24-240V AC/DC

■ Start up delay: 4 seconds

■ "2-Wire" Technology: allows simple installation Microprocessor Accuracy

■ LED Indication

. Certified for ATEX Zone 20 & CSA Class 2 Division

1 Groups E, F & G .■ IP67 Protection: totally Sealed Construction . M18 x 1.0 ISO treaded body

HV11001V10A Stopswitch M100

■ WG1-8A-BR Whirligig (target/bracket/guard)

MAG2000M Mag-Con Magnetic Connector for

Whirligig

(Used

M100

simple and reliable installation on shaft speed monitoring applications)

Detailed specifications, wirinq diaqrams and installation / _nl , . . . .. .,

r , ! Please refer to instruction manual for correct installation .

operatinq instructions available immediately upon request. . , .. .. . .. „„„,

^ ³ Information subject to change or correction. May 2007.

4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
