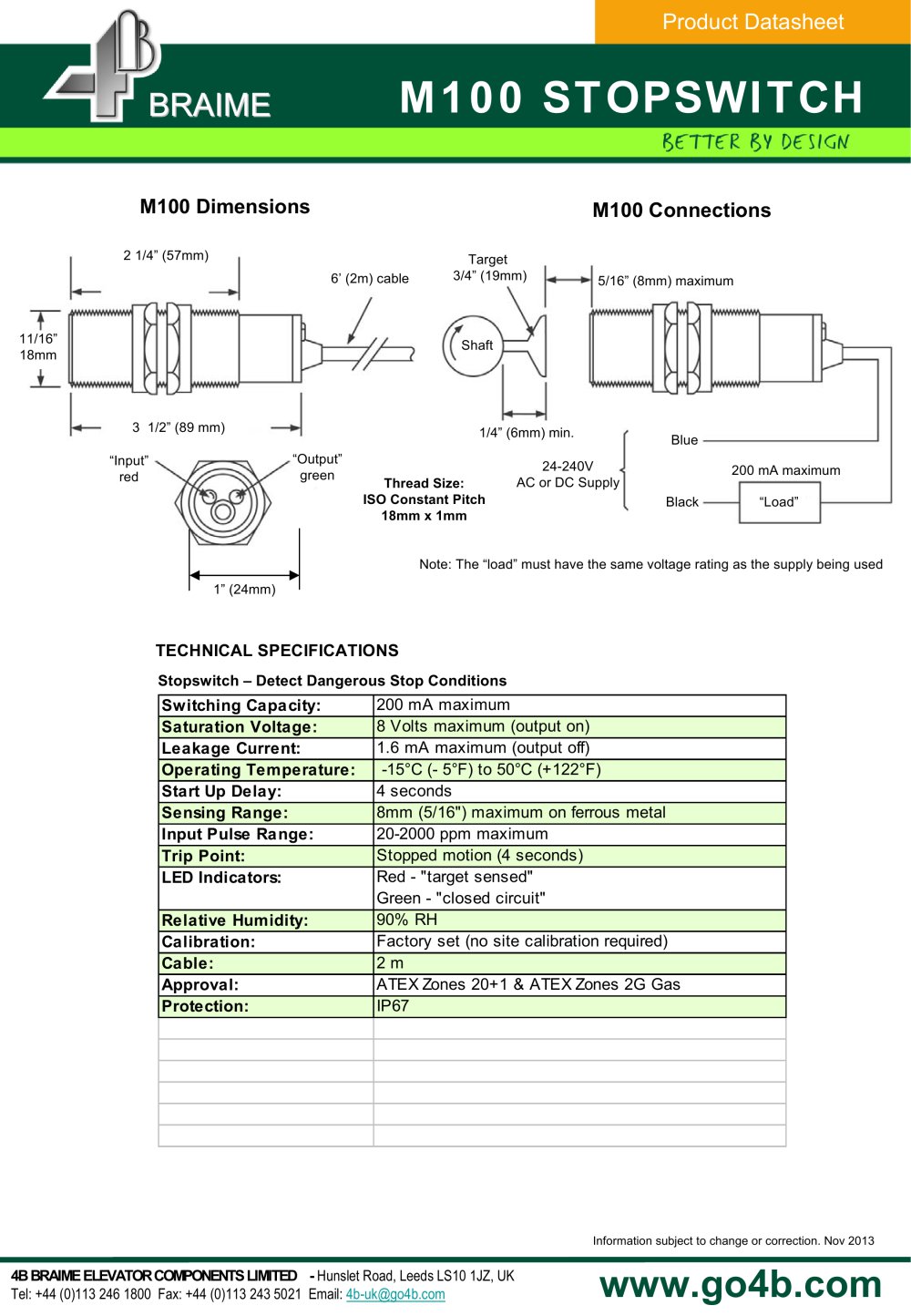

| | | Product Information | | |
| | | |
| | | M100 STOPSWITCH | | |
| | | BRAIME | | |
| | | |
| | | |
| | | ~TecríHt>t¿>tS-Y */N*toVATi«isí • dPWtiTy. Valve. | | |
| | | |
| | | M100 Dimensions | | |
| | | M100 Connections | | |
| | | |
| | | |
| | | 2 1/4" (57mm) | | |
| | | Target 6'(2m) cable 3/4" (19mm) | | |
| | | |
| | | 5/16" (8mm) maximum 4 | | |
| | | |
| | | Shaft^; | | |
| | | 11/16" 18mm | | |
| | | |
| | | |
| | | |
| | | 1/4" (6mm) min. "C)utPut" 24-240V . green Thread Size: AC or DC Supply ISO Constant Pitch 18mm x 1mm | | |
| | | Blue | | |
| | | |
| | | 200 mA maximum | | |
| | | |
| | | Black | | "Load" | | |
| | | |
| | | |
| | | Note: The "load" must have the same voltage rating as the supply being used | | |
| | | |
| | | 1" (24mm) | | |
| | | |
| | | TECHNICAL SPECIFICATIONS Stopswitch - Detect Dangerous Stop Conditions | | |
| | | |
| | | | | | | | | | | M1001V10A - (M100 2-Wire) | | | | Power Supply: | 24-240 VAC/DC | | | | Power Consumption: | 30 mA | | | | | 5 amp maximum | | | | Output: | Triac, normally closed above minimum input speed | | | | | Normally open at stopped motion | | | | Switching Capacity: | 200 mA maximum | | | | Saturation Voltage: | 8 Volts maximum (output on) | | | | Leakage Current: | 1.6 mA maximum (output off) | | | | Operating Temperature: | -25°C (-13°F) to 70°C (+158°F) | | | | Start Up Delay: | 4 seconds | | | | Sensing Range: | 8mm (5/16") maximum on ferrous metal | | | | Input Pulse Range: | 20-2000 ppm maximum | | | | Trip Point: | Stopped motion (4 seconds) | | | | | Red - "target sensed" | | | | | Green - "closed circuit" | | | | Relative Humidity: | 90% RH | | | | Calibration: | Factory set (no site calibration required) | | | | Cable: | 2 m | | | | Approval: | ATEX Zone 20 & CSA Class 2 Div1 Groups E,F& G | | | | Protection: | IP67 | | | | | | | | | |
| | | |
| | | Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007. | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
