Product Information

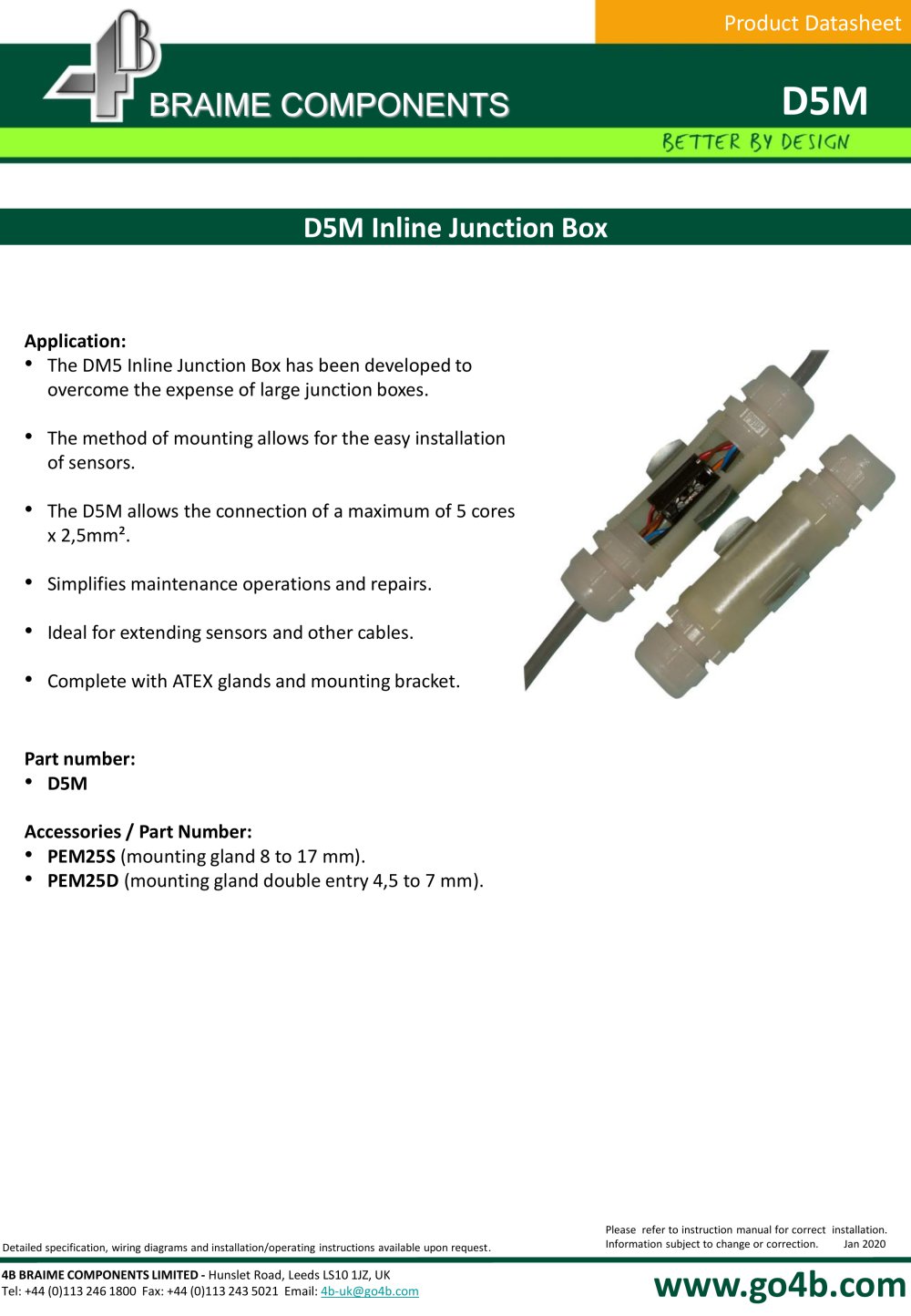

BRAIME JB1L2A D5M

INLINE JUNCTION BOX

The best compromise for industrial and Dust Hazard explosive atmospheres

ATEX certified for zone 20, 21 and 22

In explosive and industrial atmospheres it is often necessary toconnect different types of professional cables when installing industrial sensors.Traditionally, junction boxes were used for this but were often cumbersome and expensive. Alternatively, it is not always possible to install ATEX manufacturers of connectors on the sensors themselves and in some cases this solution can become very costly.The D5M Inline Junction Box has been developed to overcome these problems. It is a compromise between a junction box and a proprietary connector for sensors.The method of mounting allows for the easy installation of sensors in any industrial or even potentially explosive dust hazard atmosphere.The D5M allows the connection of a maximum of 5 cable cores @ 2,5mm².Due to its shape and dimensions, it can be placed next to the sensor it is connected to, which simplifies and reduces the downtime during maintenance operations or repairs.

JB1L2A ATEX approvedEx II 1D tDA20 IP66T120 ° C-ZONE 20

Option PEM25S mountinggland 8 to 17 mm PEM25Dmountinggland double entry 4,5 to 7 mm

NEW

PRODUCT

Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.
Please refer to instruction manual for correct installation . Information subject to change or correction. may 2006 . 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTSLTD HunsletRoad, Leeds, LS10 1JZ,UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
