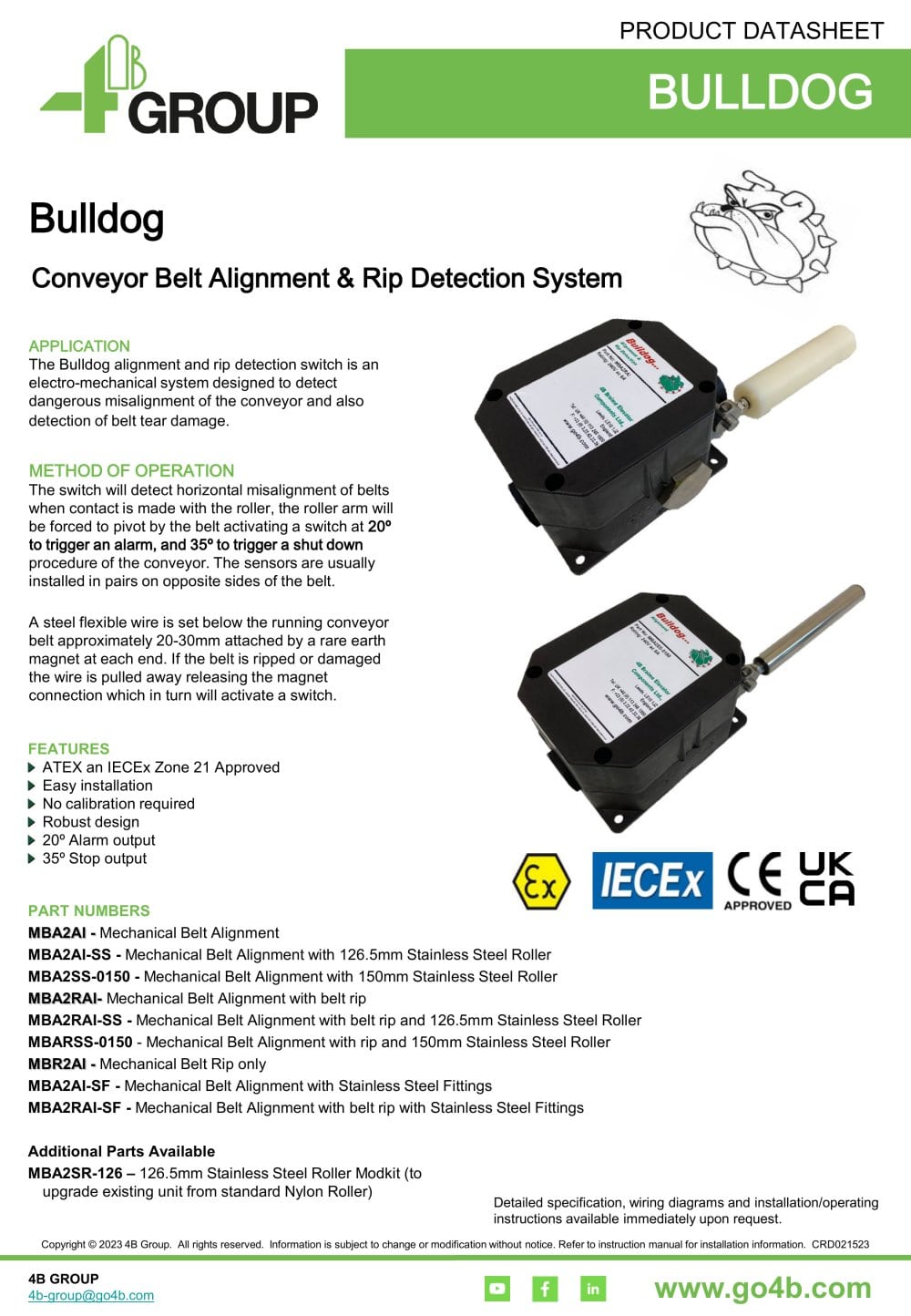

BRAIME www.go4b.com Please refer to instruction manual for correct installation. Information subject to change or correction. June 4B BRAIME ELEVATOR COMPONENTS LIMITED - Hunslet Road, Leeds LS10 1JZ, UK Tel: +44 (0)113 246 1800 Fax: +44 (0)113 243 5021 Email: 4b-uk@go4b.com Bulldog Alignment & Rip Detection APPLICATION The Bulldog alignment and rip detection switch is an electro-mechanical system designed to detect dangerous misalignment of the conveyor and also detection of belt tear damage. METHOD OF OPERATION The switch will detect horizontal misalignment of belts when contact is made with the roller, the roller arm will be forced to pivot by the belt activating a switch at 15º to trigger an alarm, and 30ºto trigger a shut down procedure of the conveyor. The sensors are usually installed in pairs on opposite sides of the belt. A steel flexible wire is set below the running conveyor belt approx 20-30mm attached by a rare earth magnet at each end. If the belt is ripped or damaged the wire is pulled away releasing the magnet connection which in turn will activate a switch. Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request. FEATURESEasy installationNo calibration requiredRobust design15ºAlarm output30ºStop outputPART NUMBERSMBA2A MBA2A --Mechanical Belt Alignment (ATEX)MBA2 --Mechanical Belt Alignment (Non ATEX)MBA2RA --Mechanical Belt Alignment with belt rip (ATEX)MBR2A --Mechanical Belt Rip (ATEX)MBR2 --Mechanical Belt Rip (Non ATEX)NewNewProductProduct Conveyor Belt Alignment & Rip detection System ATEX APPROVED
