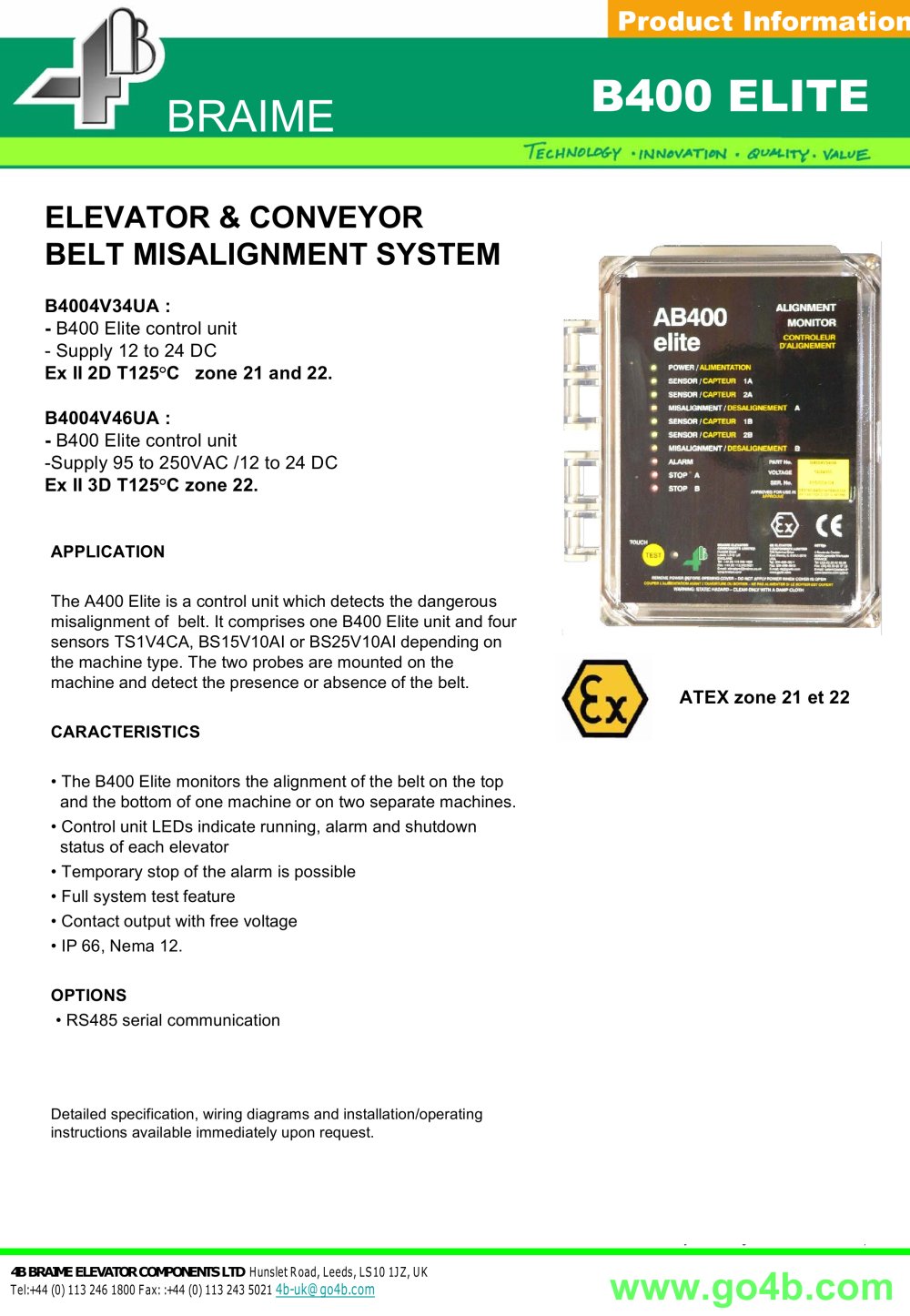

INDUSTRIAL ELEVATOR & INDUSTRIAL CONVEYOR BELT MISALIGNMENT SYSTEM

B4004V34UA:

- B400 Elite control unit -Supply 12 to 24 DC

Ex II 2D T125°C zone 21 and 22.

B4004V46UA:

- B400 Elite control unit

-Supply 95 to 250VAC /12 to 24 DC Ex II 3D T125°C zone 22.

APPLICATION

The A400 Elite is a control unit which detects the dangerous misalignment of belt. It comprises one B400 Elite unit and four sensors TS1V4CA, BS15V10AI or BS25V10AI depending on the machine type. The two probes are mounted on the machine and detect the presence or absence of the belt.

CARACTERISTICS

AB400 *

ALIGNMENT MONITOR

©IrtO D'A LI GI

» POWER / ALIMENTAT! OH

• SENSOR/CAPTEUR 1A

* SENSOR/CAPTEUR 2A

* WSAUGNHEHT / DESALIGNEMENT A

* SENSOR / CAPTEUR 1B

• SENSOfl/CAPTEUR 26

• MISALIGNMENT,¹ DESALIGNEMENT Q

ATEX zone 21 et 22

The B400 Elite monitors the alignment of the belt on the top and the bottom ofone machine or on two separate machines. Control unit LEDs indicate running, alarm and shutdown status of each elevator

Temporary stop of the alarm is possible Full system test feature Contact output with free voltage IP 66, Nema 12.

OPTIONS

• RS485 serial communication

Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.
