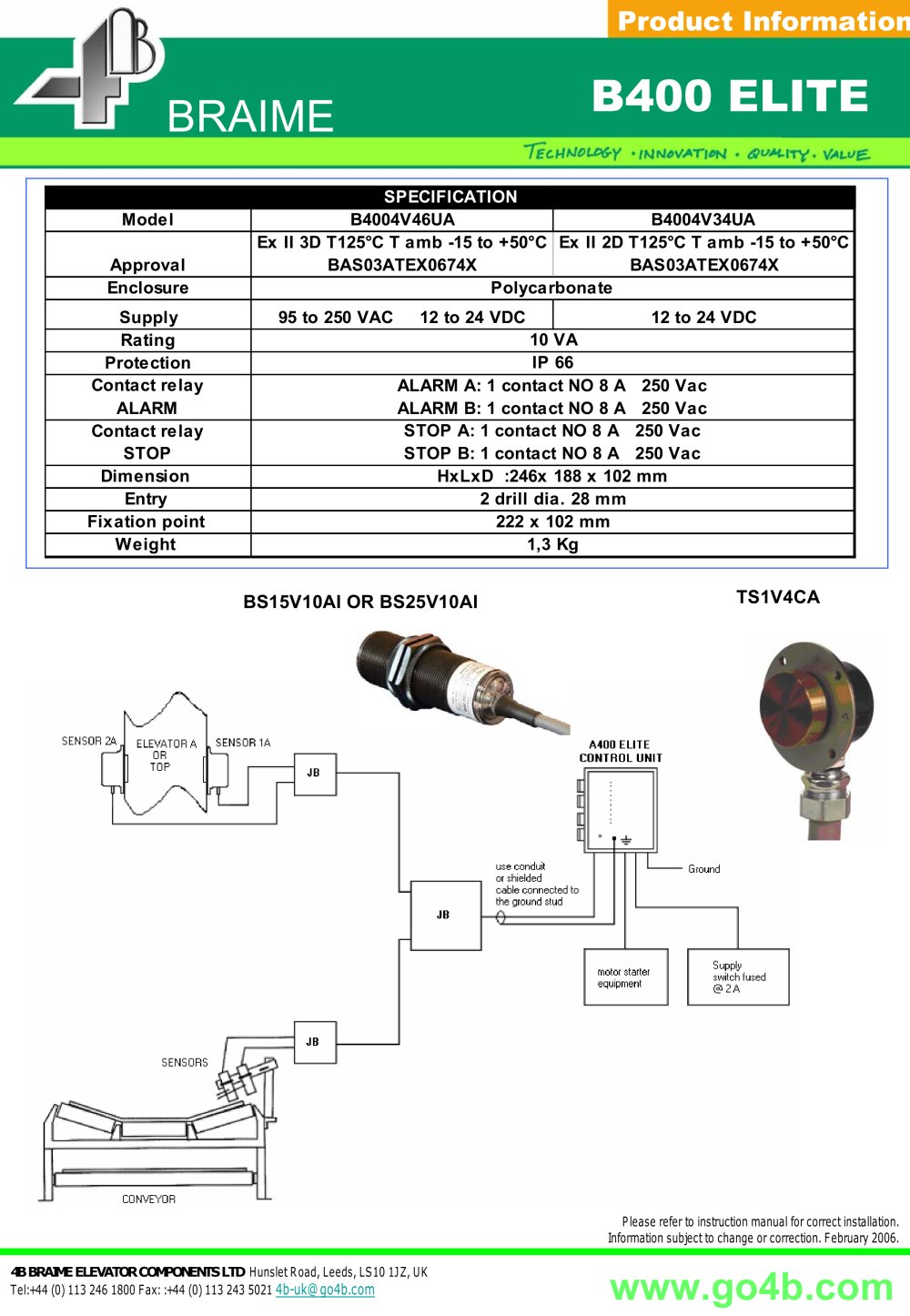

| | | BRAIME 8400 ELITE | | |
| | | |
| | | ~TÊcUM>u&Y ' ttlntVATieH ■ d^H-ity. Value. | | |
| | | |
| | | \ | | |
| | | | | | | | | | | SPECIFICATION | | | | Model | B4004V46UA | B4004V34UA | | | | Approval | Ex II 3D T125°C T amb -15 to +50°C BAS03ATEX0674X | Ex II 2D T125°C T amb -15 to +50°C BAS 03ATEX0674X | | | | Enclosure | Polycarbonate | | | | Supply | 95 to 250 VAC 12 to 24 VDC | 12 to 24 VDC | | | | Rating | 10 VA | | | | Protection | IP 66 | | | | Contact relay ALARM | ALARM A: 1 contact NO 8 A 250 Vac ALARM B: 1 contact NO 8 A 250 Vac | | | | Contact relay STOP | STOP A: 1 contact NO 8 A 250 Vac STOP B: 1 contact NO 8 A 250 Vac | | | | Dimension | HxLxD :246x 188 x 102 mm | | | | Entry | 2 drill dia. 28 mm | | | | Fixation point | 222 x 102 mm | | | | Weight | 1,3 Kg | | | | | | | | | | |
| | | |
| | | |
| | | TS1V4CA | | |
| | | BS15V10AI OR BS25V10AI | | |
| | | |
| | | |
| | | Please refer to instruction manual for correct installation. Information subject to change or correction. February 2006. | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
