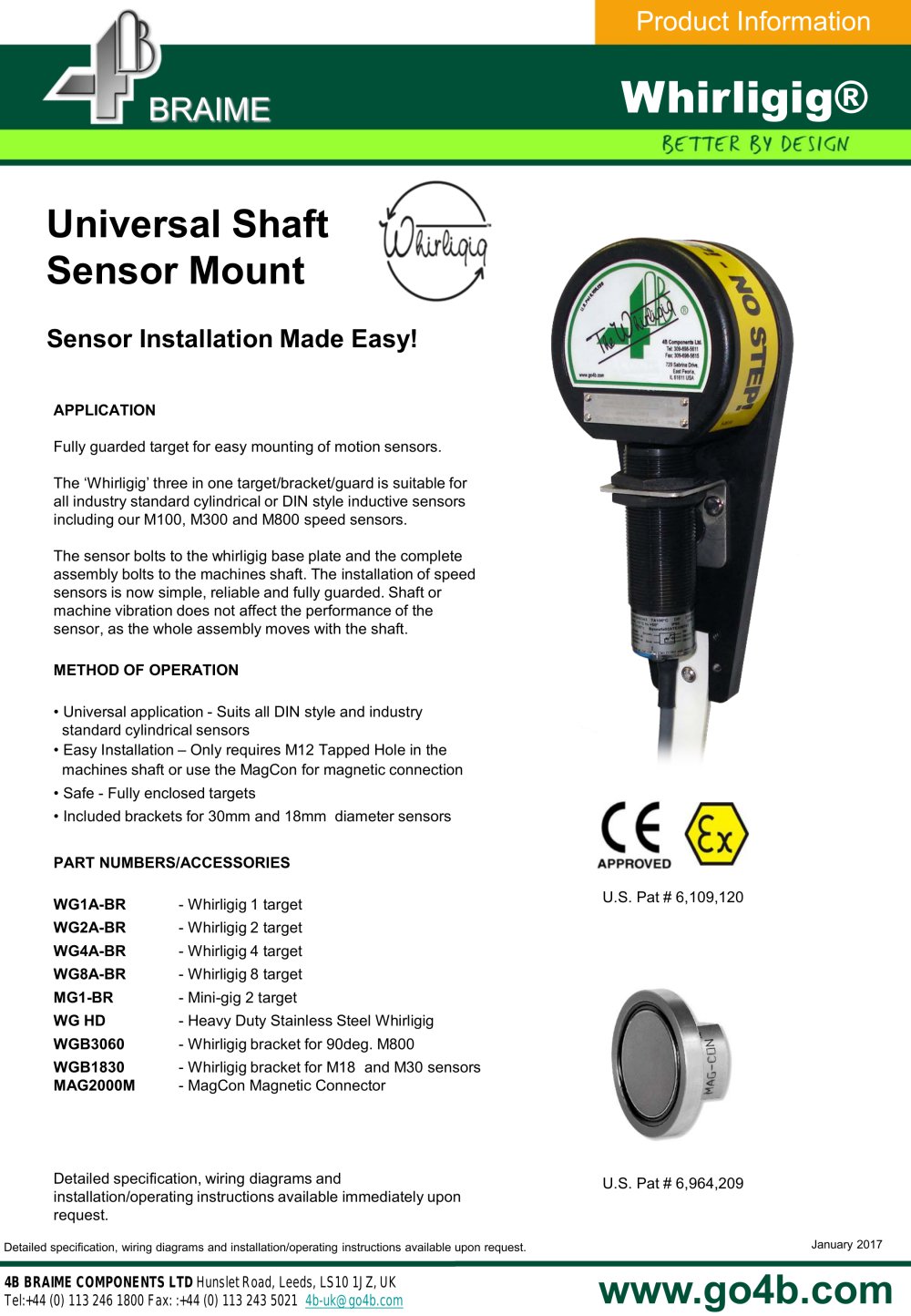

4B Whirligig - Universal Shaft Sensor Mount for Speed Monitoring - 31528 Whirligig®
Universal Shaft Sensor Mount Sensor Installation Made Easy!
APPLICATION
Fully guarded target for easy mounting of motion sensors.The ‘Whirligig’three in one target/bracket/guard is suitable for all industry standard cylindrical or DIN style inductive sensors including our M100, M300 and M800 speed sensors.The sensor bolts to the whirligig base plate and the complete assembly bolts to the machines shaft. The installation of speed sensors is now simple, reliable and fully guarded. Shaft or machine vibration does not affect the performance of the sensor, as the whole assembly moves with the shaft.METHOD OF OPERATION U.S. Pat # 6,109,120
?Universal application -Suits all DIN style and industry standard cylindrical sensors?Easy Installation –Only requires an M12 tapped hole in themachines shaft or use the MagConfor magnetic connection?Safe -Fully enclosed targets?Included brackets for 30mm and 18mm diameter sensorsCERT: ATEX Zone 20 and 0 PART NUMBERS/ACCESSORIES
WG1A-BR -Whirligig 1 pulse target WG2A-BR -Whirligig 2 pulse targetNEW
WG4A-BR -Whirligig 4 pulse targetPRODUCT
WG8A-BR -Whirligig 8 pulse target MG1-BR -Mini-gig 2 pulse target WG HD -Heavy Duty Stainless Steel Whirligig WGB3060 -Whirligig bracket for 90deg. M800 WGB1830 -Whirligig bracket for sensordia. 18 / 30 mm MAG2000M -MagConMagnetic ConnectorDetailed specification, wiring diagrams and installation/operating instructions available immediately upon request.Please refer to instruction manual for correct installation
