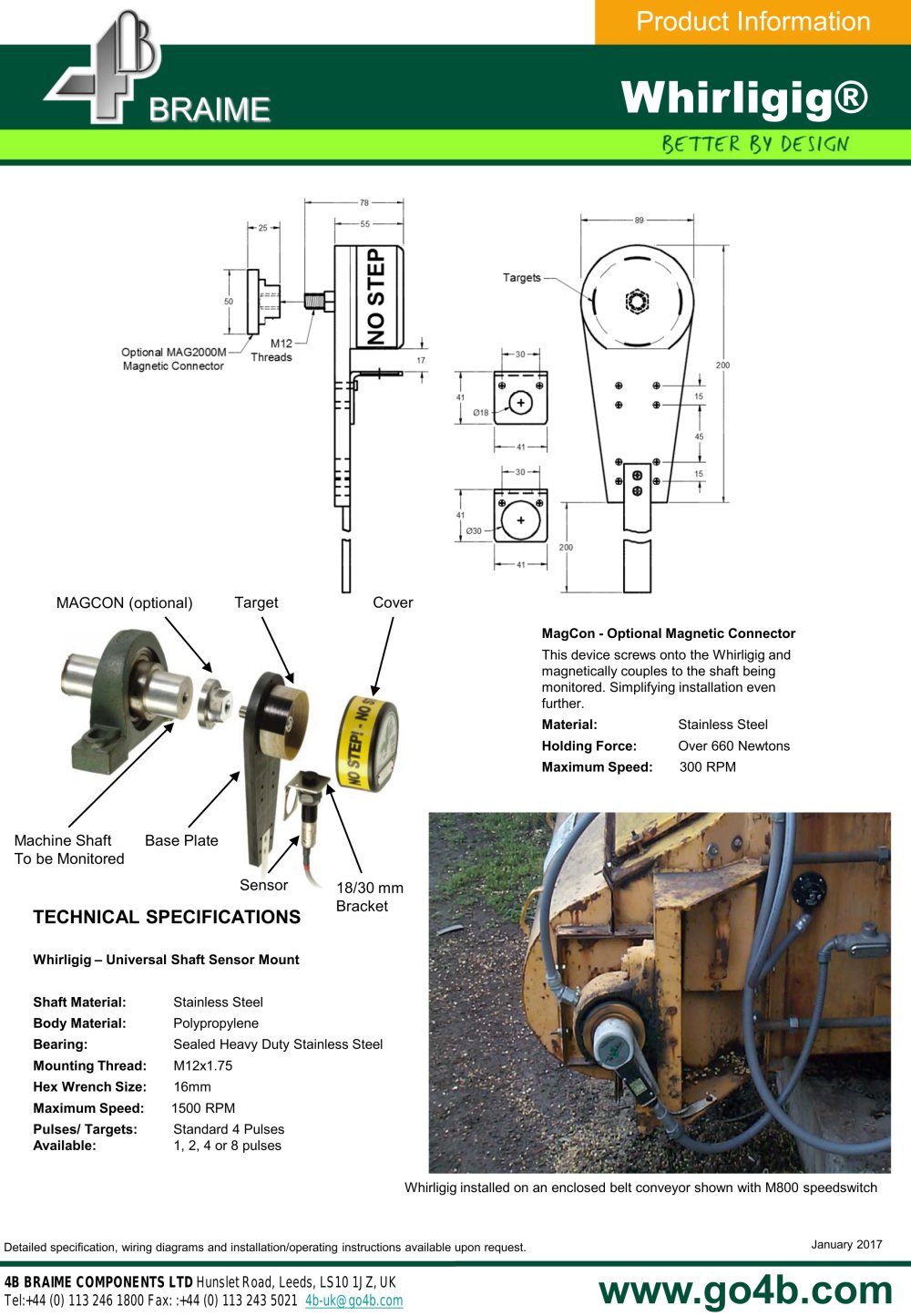

COMPONENTS Whirligig®

1”

2”

0.25”

3.5”8”8.5”

1.75”

Mag-ConM12 Mounting ThreadRectangularSensor

30mm 33mm48mm M800 M100 M300 Support forcylindrical sensors suppliers Ø 18/30mm (included) 60mm 60mm 8 holestapped M5

30 mm ØSensor 18 mm Ø Sensor

MagCon-Optional Magnetic Connector manufacturer This device screws onto the Whirligig and magnetically couples to the shaft being monitored. Simplifying installation even further. Material: Stainless Steel Holding Force: Over 150 lb Maximum Speed: 300 RPM

Machine ShaftTo be Monitored MAG-CON (optional)TargetCover18/30 mmBracketSensor Base Plate

TECHNICAL SPECIFICATIONS

Whirligig –Universal Shaft Sensor MountShaft Material: Stainless Steel Body Material: Polypropylene Bearing specification: Sealed Heavy Duty Stainless Steel Thread Size: M12 x 1.75 Hex Wrench Size: 19mm Maximum Speed: 1500 RPM Pulses/ Targets: Standard 2 Pulses Available: 1, 2, 4 or 8 pulses
Whirligig installed on an enclosed belt conveyor suppliers shown with M800speedswitch Please refer to instruction manual for correct installation . Information subject to change or correction. February 2006 . 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTSLTD HunsletRoad, Leeds, LS10 1JZ,UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 elevator@braime.co.uk

www.go4b.com
