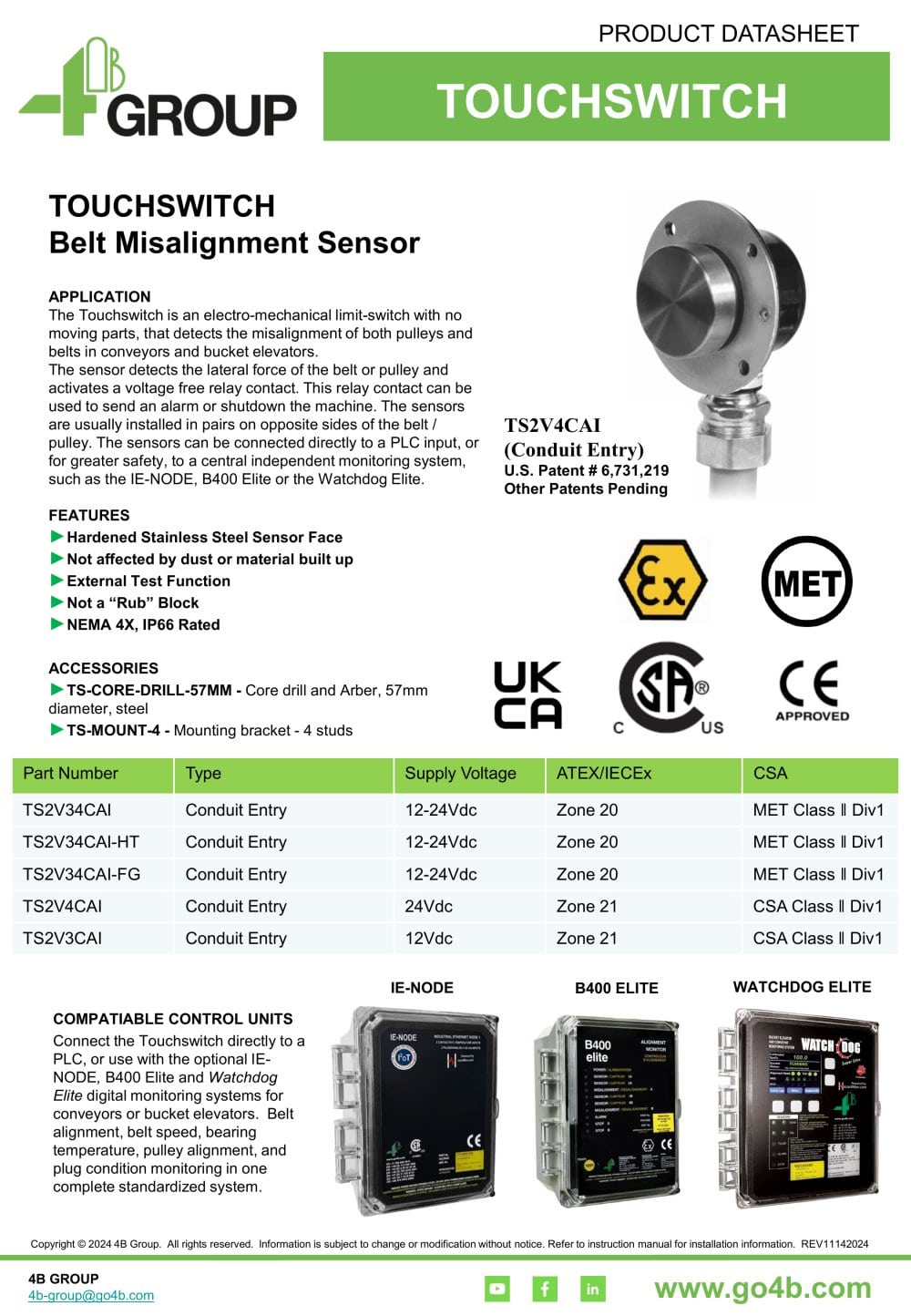

The Touchswitch is an electro-mechanicsI limit-switch with no moving parts, that detects the misalignment of both pulleys and belts In conveyors and bucket elevators. The sensor detects the lateral force of the belt or pulley and activates a voltage free relay contact. This relay contact can be used to send an alarm or shutdown the machine. The sensors are usually installed in pairs on opposite sides of the belt / pulley.

► The face of the sensor is made from hardened and annealed stainless steel, not soft brass or aluminium, increasing wear resistance when the belt contacts It.

► Not affected by dust or material built up; will work when completely covered by material.

ï An external test knob allows for quick and simple sensor/system testing.

► The sensors can be connecting direct to a PLC or for increased security to an indépendant monitoring system such as the B400 ELITE, WATCHDOG ELITE or T500 Hotbus, all ATEX Approved zone 21 and 22.

kTS1V4A-Cable Entry Touchswitch ATEX Zone 20

► TS2V4CA - Conduit Entry Touchswitch ATEX Zone 20 & CSA Class 2 Div 1, Groups E, F 8 G

► TS Spacers - additional spacers available to adjust position relative to belt

► Connect the Touchswitch directly to a PLC, or use with the optional T500 Elite Hotbus and Watchdog Elite digital monitoring systems for conveyors or bucket elevators Belt alignment, belt speed, bearing temperature, pulley alignment, and plug condition monitoring in one complete standardized system.
