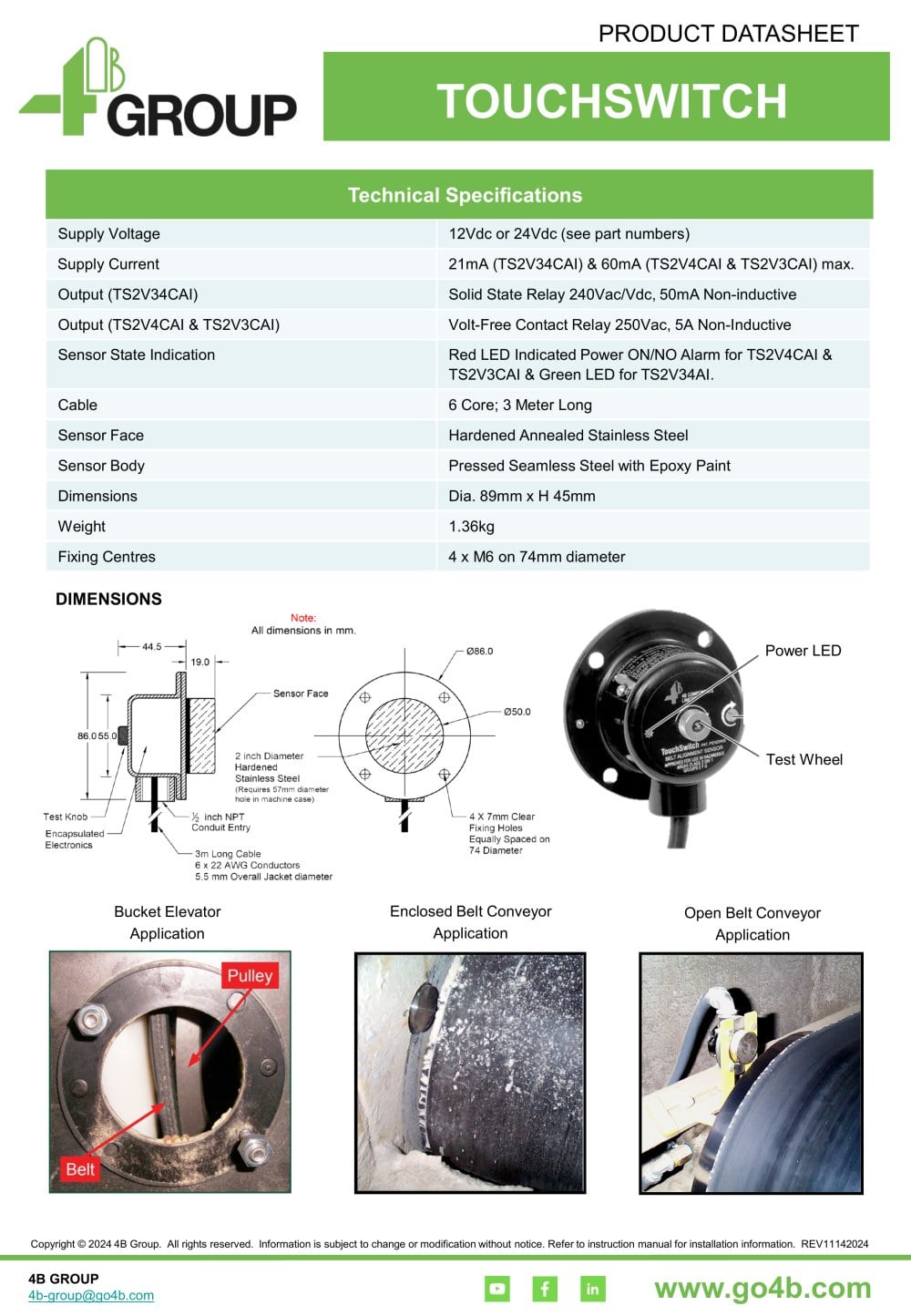

TOUCHSWITC H SETEM BRAIME

TECHNICAL SPECIFICATIONSSupply 24 V dc Supply Max 27 V dcRed LED indicates when powered up and relay is energizedTurn the test knob clockwise until the LED goes out Power consumpion 60 mA Indication Approval Adjustment Turn Sensivity Adjustement Screw (1 to 12 lbs approx) Test KnobProtection Cable 6 wires, 2 meter long Body Construction Pressed seamless steel with epoxy paint Face Construction Hardened and annealed stainless steel IP 65 Output Contact relay 5A 250V ac not inductive ATEX EX II 1D T120°C (Zone 20) & CSA Weight Dimensions 0,769 KgDia. 89 mm x 44,5 mm Fixing centres M6 51 mm x 51 mm

DIMENSIONS

51mm LED 45mm 19,05mm 4xM6 Test Knob 50mm Potentiometer 55,88mm 89mm 51mm Suppliers of sensor Face Test Knob 6 ft Long Cable Encapsulated Electronics Enclosed Belt ConveyorApplication Open Belt ConveyorApplicationBucket ElevatorApplication TS1V4CA Flange of Seal lift belt Bucket Pulley Flange of elevator TS1V4CA Seal Please refer to instruction manual for correct installation . Information subject to change or correction. July 2007 4B BRAIME ELEVATOR COMPONENTSLTD HunsletRoad, Leeds, LS10 1JZ,UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
