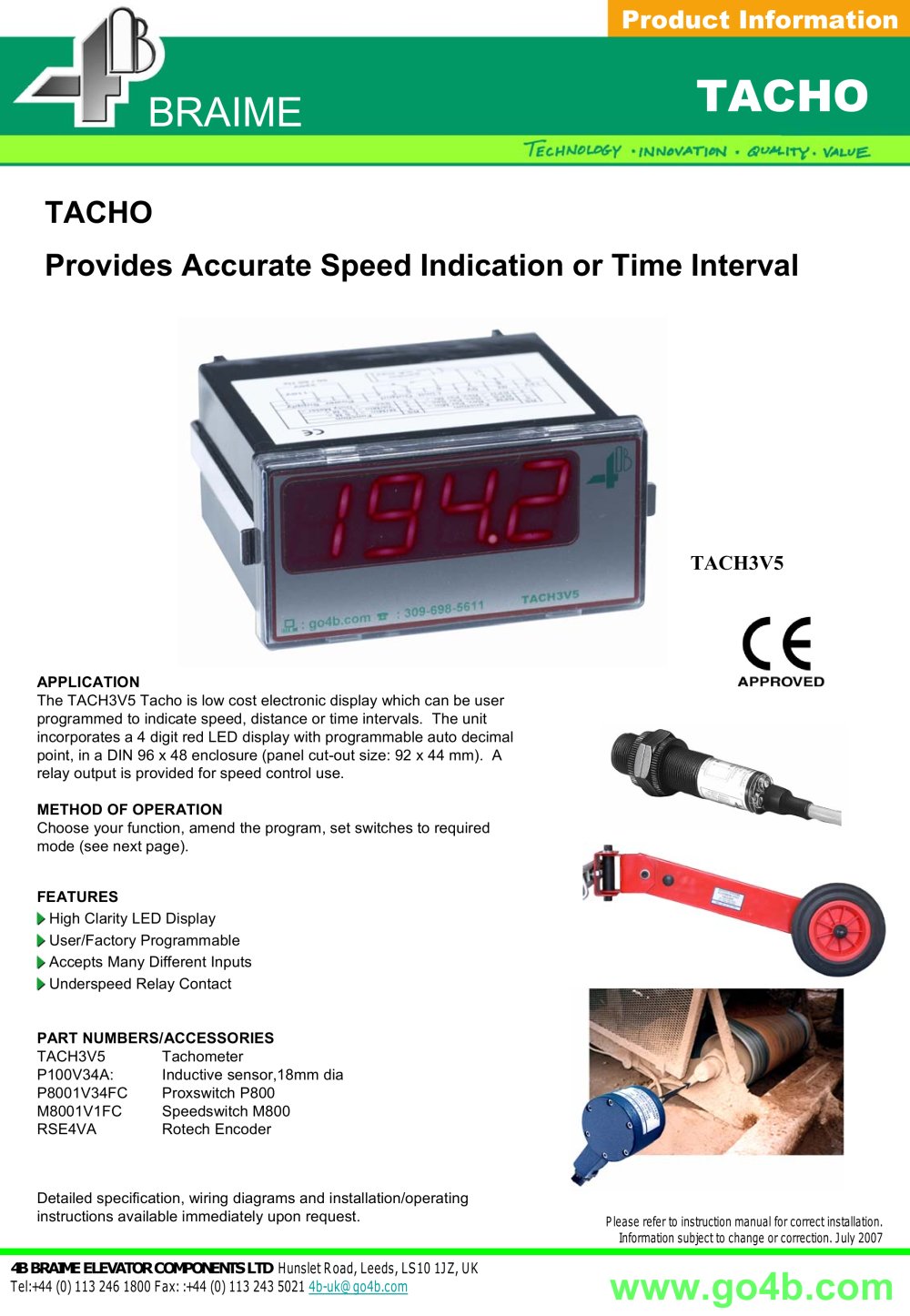

| | | Product Information | | |
| | | |
| | | TACHO | | |
| | | BRAIME | | |
| | | |
| | | |
| | | TectìUfLOtS-Y */N*toVATÌ«isi • ¿PM*t-iTy. valve | | |
| | | |
| | | TACHO Provides Accurate Speed Indication or Time Interval | | |
| | | |
| | | TACH3V5 | | |
| | | |
| | | cc- APPROVED | | |
| | | APPLICATION The TACH3V5 Tacho is low cost electronic display which can be user programmed to indicate speed, distance or time intervals. The unit incorporates a 4 digit red LED display with programmable auto decimal point, in a DIN 96 x 48 enclosure (panel cut-out size: 92 x 44 mm). A relay output is provided for speed control use. METHOD OF OPERATION Choose your function, amend the program, set switches to required mode (see next page). | | |
| | | |
| | | |
| | | FEATURES ► High Clarity LED Display ► User/Factory Programmable ► Accepts Many Different Inputs Underspeed Relay Contact PART NUMBERS/ACCESSORIES | | |
| | | |
| | | TACH3V5 P100V34A: P8001V34FC M8001V1FC RSE4VA | | Tachometer | | |
| | | |
| | | |
| | | Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request. | | |
| | | Please refer to instruction manual for correct installation. Information subject to change or correction. July 2007 | | |
| | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
