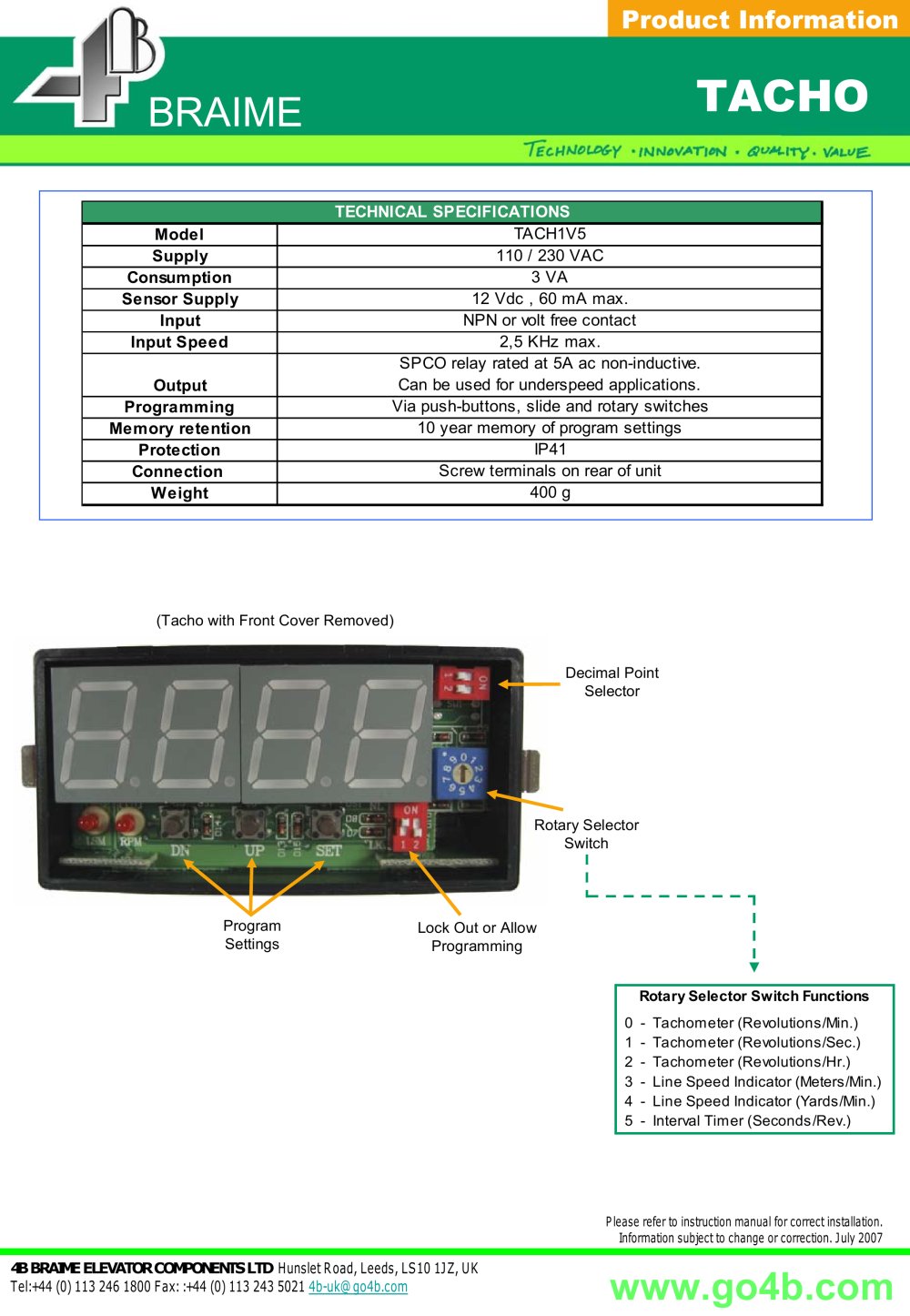

Product Information

TACHO

BRAIME


	TECHNICAL SPECIFICATIONS
	Model	TACH1V5
	Supply	110 / 230 VAC
	Consumption	3 VA
	Sensor Supply	12 Vdc , 60 mA max.
	Input	NPN or volt free contact
	Input Speed	2,5 KHz max.
		SPCO relay rated at 5A ac non-inductive.
	Output	Can be used for underspeed applications.
	Programming	Via push-buttons, industrial slide and rotary switches
	Memory retention	10 year memory of program settings
	Protection	IP41
	Connection	Screw terminals on rear of unit
	Weight	400 g

(Tacho with Front Cover Removed)

Decimal Point Selector

Rotary Selector Switch I I

i___.

Program Settings

Lock Out or Allow Programming

Rotary Selector Switch Functions

0 - Tachometer (Revolutions/Min.)

1 - Tachometer (Revolutions/Sec.)

2 - Tachometer (Revolutions/Hr.)

3 - Line Speed Indicator (Meters/Min.)

4 - Line Speed Indicator (Yards/Min.)

5 - Interval Timer (Seconds/Rev.)

Please refer to instruction manual for correct installation. Information subject to change or correction. July 2007
