APPLICATION
For monitoring alignment of
conveyor belts manufacturer, providing alarm and stop control signals in case ofmisalignment.The B400 Conveyor Belt Monitor is an electronic control unit which works in conjunction with two ormore sensors situated along the side of the belt to monitor belt tracking. With outputs for alarm and
stop conditions.
FEATURES
•Easy installation - Plug in 11 pin control module and fully adjustable sensors•LED Status lights for misalignment, alarm and stop conditions•Outputs - Two voltage free relay contacts•Maintenance free and fail
industrial safe•Sensors encapsulated in tough polycarbonate body•Hazardous area approved sensors - FM/CSA/ATEX
•Dustproof and watertight sensors to IP67/NEMA 6 and 6P
ACCESSORIES
•Pt. No. BAS1 - Polyurethane wear shield•Pt. No. BMP1 - PG36 Mounting gland

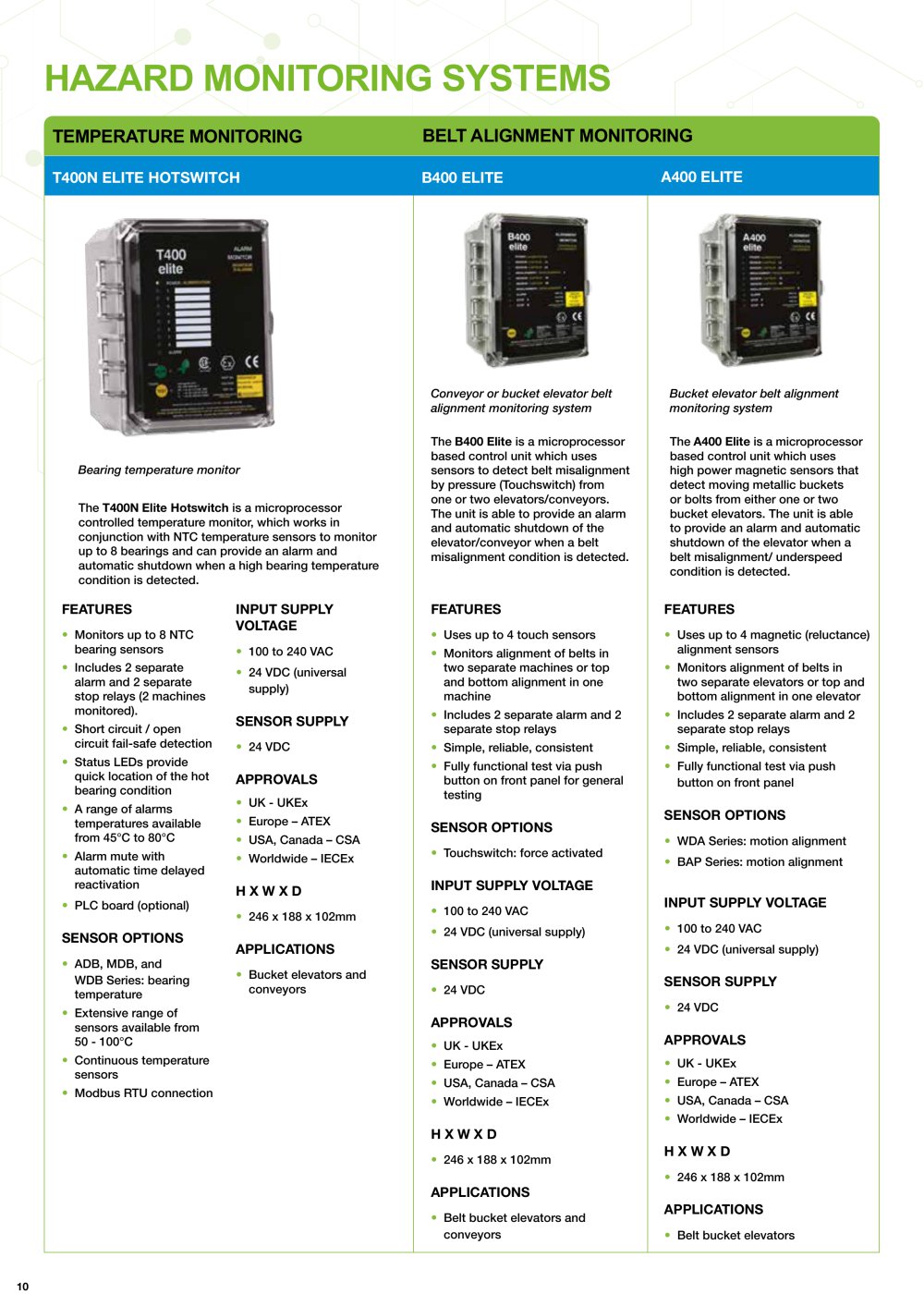

B400 CONTROL MODULE
PART NUMBERS / VOLTAGE
B4001V1 Control Module -110V AC B4001V2 Control Module -220V AC B4001V4 Control Module -24V DC BS1V3F Sensor -12V DC BS15V10A Sensor -Multi-voltage Conduit adaptor/mounting gland TS1V3CA Sensor -12V DC TS1V4CA Sensor -24V DC Sensors
WEIGHT
Control Module - 0.3Kg/EachSensor - 0.3Kg/Each Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request.
Conveyor Conveyor Sensors
Sensors CONVEYOR BELT OPTIONAL PROBES AND MOUNTING GLAND OPTIONAL BELT TOUCH SWITCH
10
