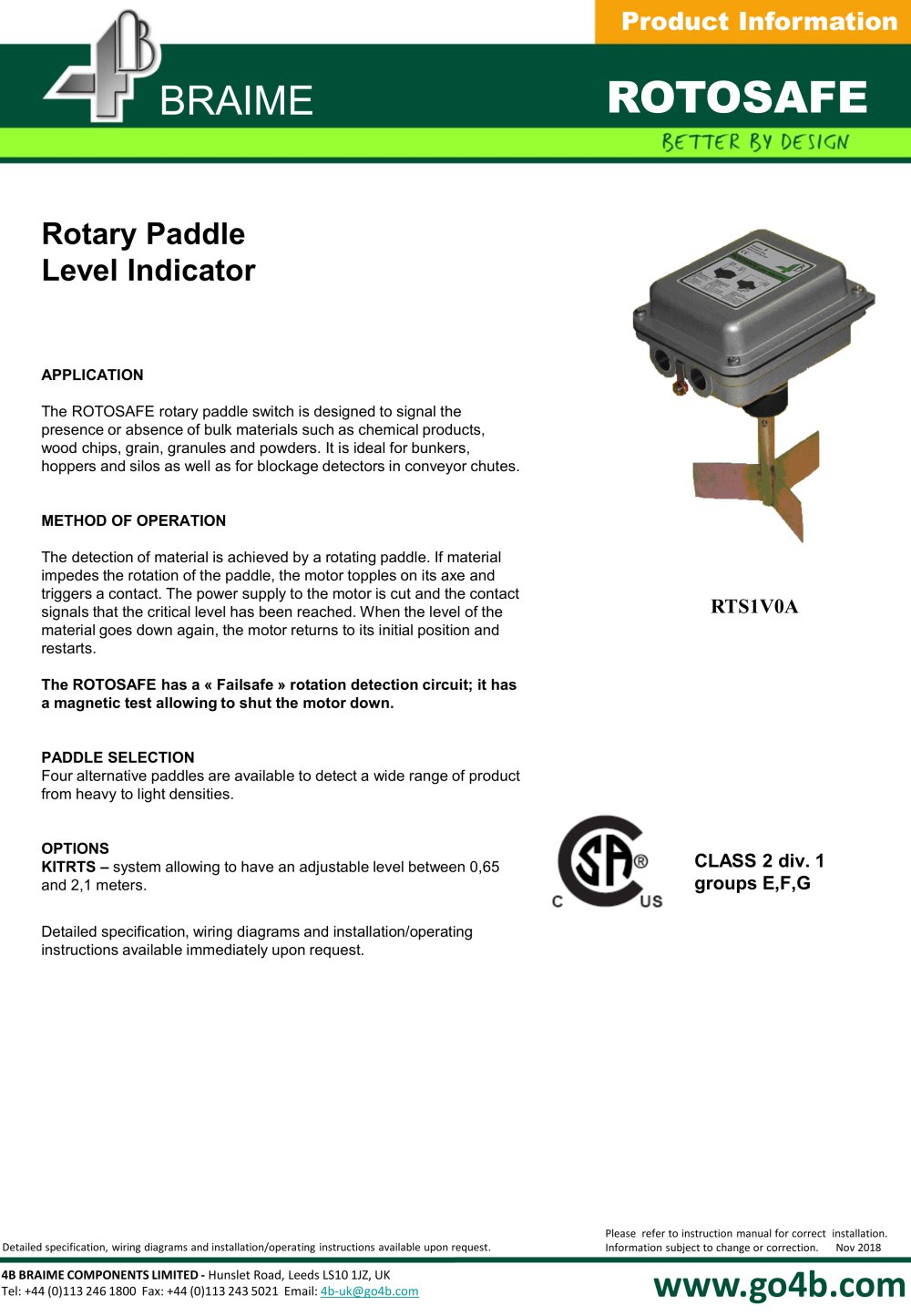

| | | Product Information | | |
| | | |
| | | ROTOSAFE | | |
| | | BRAIME | | |
| | | |
| | | |
| | | ~7ectíHt>t¿>tS-Y */N*toVAri«isí • dPWtiTy. Value. | | |
| | | |
| | | Rotary Paddle Level Indicator | | |
| | | |
| | | Approved for dust-explosive environments Zones 20, 21 & 22 | | |
| | | |
| | | APPLICATION The ROTOSAFE rotary paddle switch is designed to signal the presence or absence of bulk materials such as chemical products, wood chips, grain, granules and powders. It is ideal for bunkers, hoppers and silos as well as for blockage professional detectors in conveyor suppliers chutes. | | |
| | | RTS1V0A ATEX-approved | | |
| | | |
| | | |
| | | METHOD OF OPERATION The detection of material is achieved by a rotating paddle. If material impedes the rotation of the paddle, the motor topples on its axe and triggers a contact. The power supply specification to the motor is cut and the contact signals that the critical level has been reached. When tjhe level of the material goes down again, the motor returns to its initial position and restarts. The ROTOSAFE has a « Failsafe » rotation detection circuit; it has a magnetic test allowing to shut the motor down. | | |
| | | Ex II 1D T100°C-IP 65-ZONE 20 | | |
| | | |
| | | CLASS 2 div. 1 groups E,F,G | | |
| | | |
| | | |
| | | PADDLE SELECTION Four alternative paddles are available to detect a wide range of product from heavy to light densities. | | |
| | | |
| | | OPTIONS KITRTS - system allowing to have an adjustable level between 0,65 and 2,1 meters. | | |
| | | |
| | | Detailed specification, wiring diagrams and installation/operating instructions available immediately upon request. | | |
| | | |
| | | Please refer to instruction manual for correct installation . Information subject to change or correction. July 2007. | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4D.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
