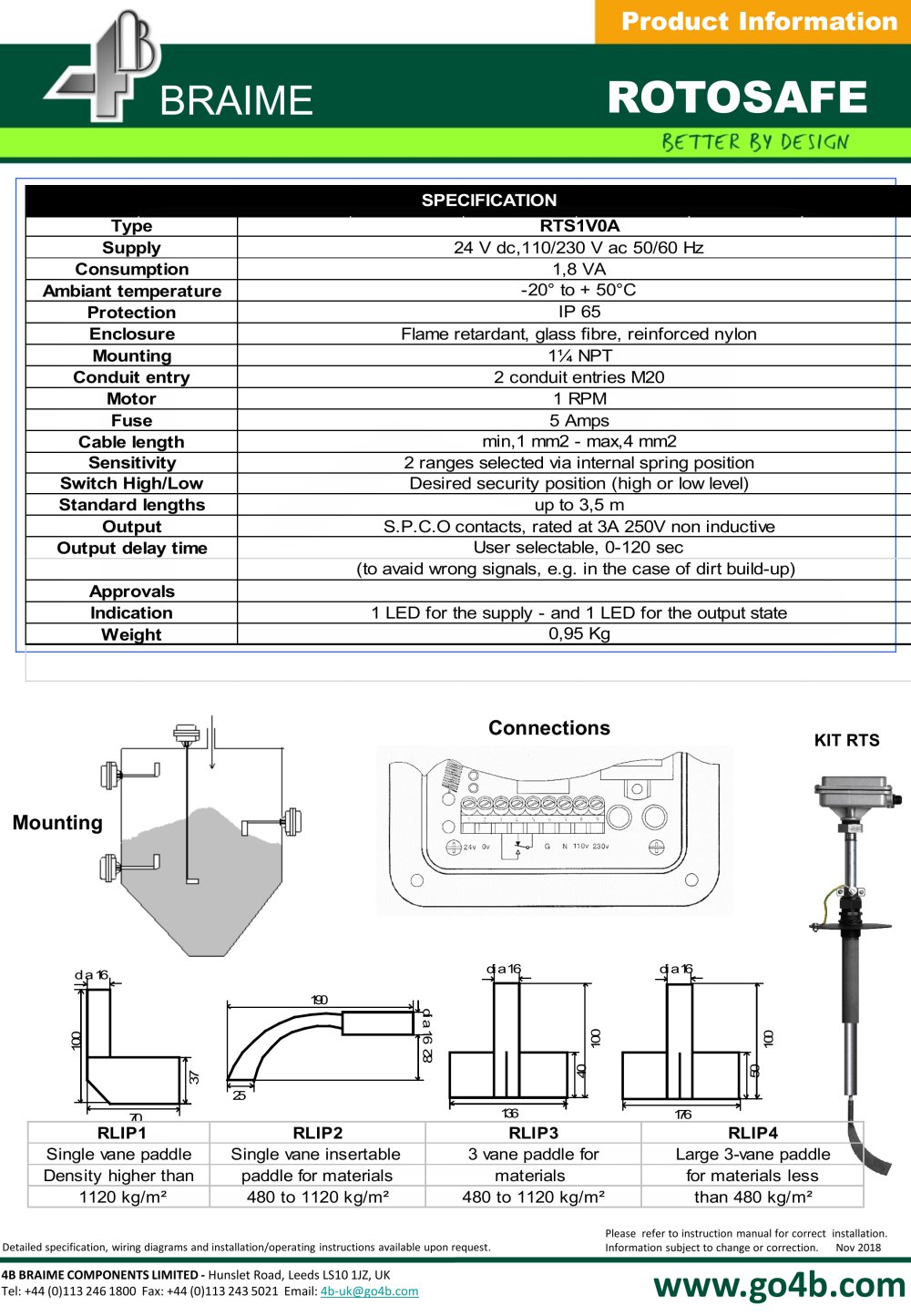

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Product Information | | | | | | | | | | ROTOSAFE | | | | | | BRAIME | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | SPECIFICATION | | | | Type | RTS1V0A | | | | Supply | 24 V dc,110/230 V ac 50/60 Hz | | | | Consumption | 1,8 VA | | | | Ambiant temperature | -20° to + 50°C | | | | Protection | IP 65 | | | | Enclosure | Flame retardant, glass fibre, reinforced nylon | | | | Mounting | 1% NPT | | | | Conduit entry | 2 conduit entries M20 | | | | Motor | 1 RPM | | | | Fuse | 5 Amps | | | | Cable length | min,1 mm2 - max,4 mm2 | | | | Sensitivity | 2 ranges selected via internal spring position | | | | Switch High/Low | Desired security position (high or low level) | | | | Standard lengths | up to 3,5 m | | | | Output | S.P.C.O contacts, rated at 3A 250V non inductive | | | | Output delay time | User selectable, 0-120 sec | | | | | (to avaid wrong signals, e.g. in the case of dirt build-up) | | | | Approvals | ATEX EX II 1D T100°C | | | | Indication | 1 LED for the supply - and 1 LED for the output state | | | | Weight_ | 0,95 Kg | | | | | | | | | | | | | | | | | | | | | | | | | Connections | | | | | | KIT RTS .1 | | | | | | | | | | | | | | Mounting | | | | | | | | | | di a 16 | | da 16 | | | | | | da 16 | | | | | | | | | | | | | | 1S0 | | | | | | | | | | 8 | | | | | | | | | | fi | | | | | | | | | | '25 | | | | | | | | | | 13B | | | | | | .176 | | | | | | 70 | | | | | | | | | | | | | | | | | | | | | | | | | | | RLIP1 | RLIP2 | RLIP3 | RLIP4 4 | | | | Single vane paddle | Single vane insertable | 3 vane paddle for | Large 3-vane paddle | | | | Density higher than | paddle for materials | materials | for materials less | | | | 1120 kg/m2 | 480 to 1120 kg/m2 | 480 to 1120 kg/m2 | than 480 kg/m2 | | | | | | | | | | | | | | | | | | | Please refer to instruction manual for correct installation . Information subject to change or correction. July 2007. | | | | | | | | | | 4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | | | | | www.go4b.com | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
