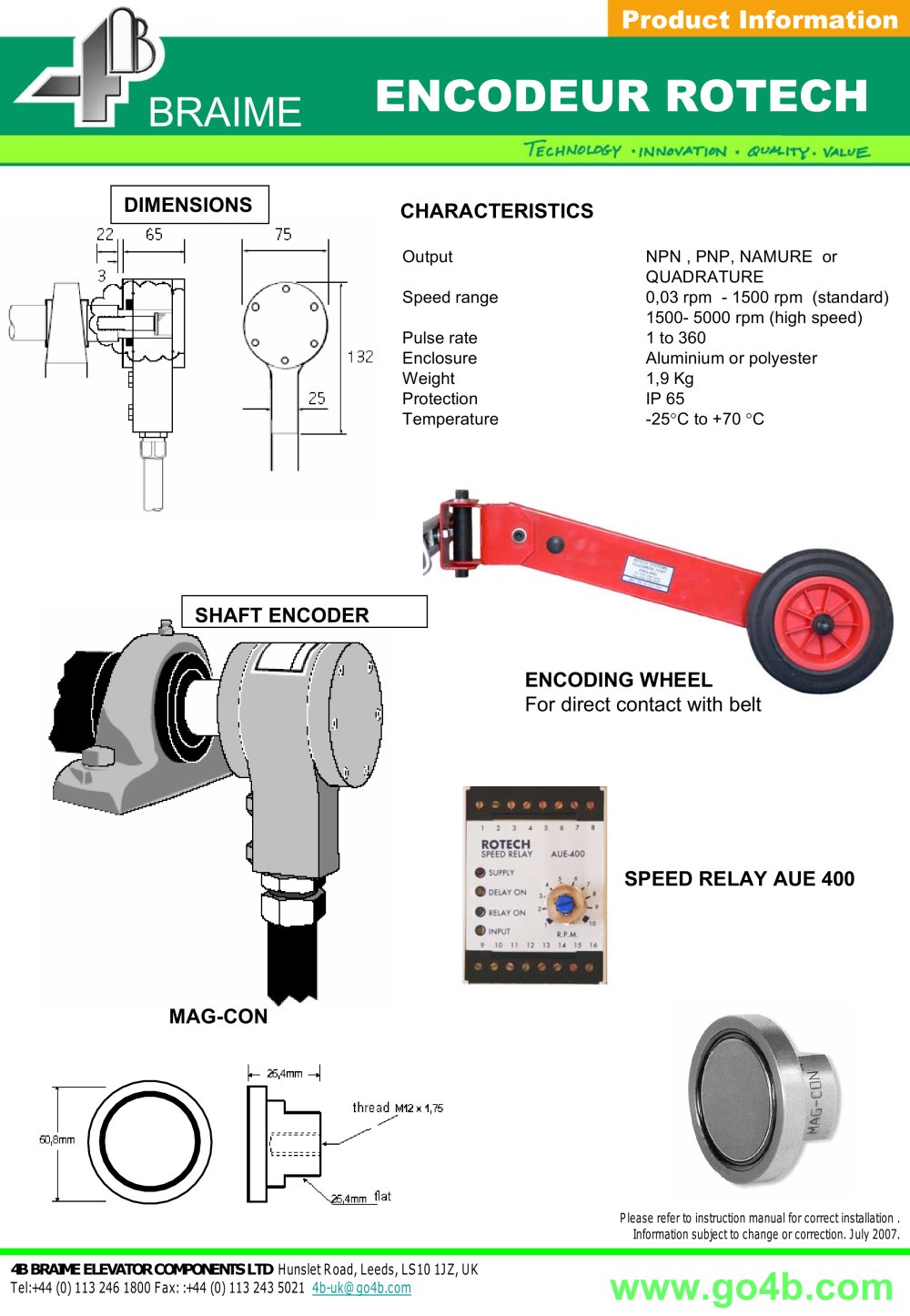

BRAIME

ENCODEUR ROTECH

DIMENSIONS CHARACTERISTICS
Output NPN , PNP, NAMURE or QUADRATURE Speed range0,03 rpm-1500 rpm(standard)1500-5000 rpm(highspeed)Pulse rate1 to 360 Enclosure Aluminium or polyester Weight1,9 Kg Protection IP 65 Temperature-25 ° C to +70 ° C SHAFT ENCODER ENCODING WHEEL For direct contact withbelt SPEED RELAY AUE 400MAG-CON
Please refer to instruction manual for correct installation . Information subject to change or correction. July 2007 . 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
