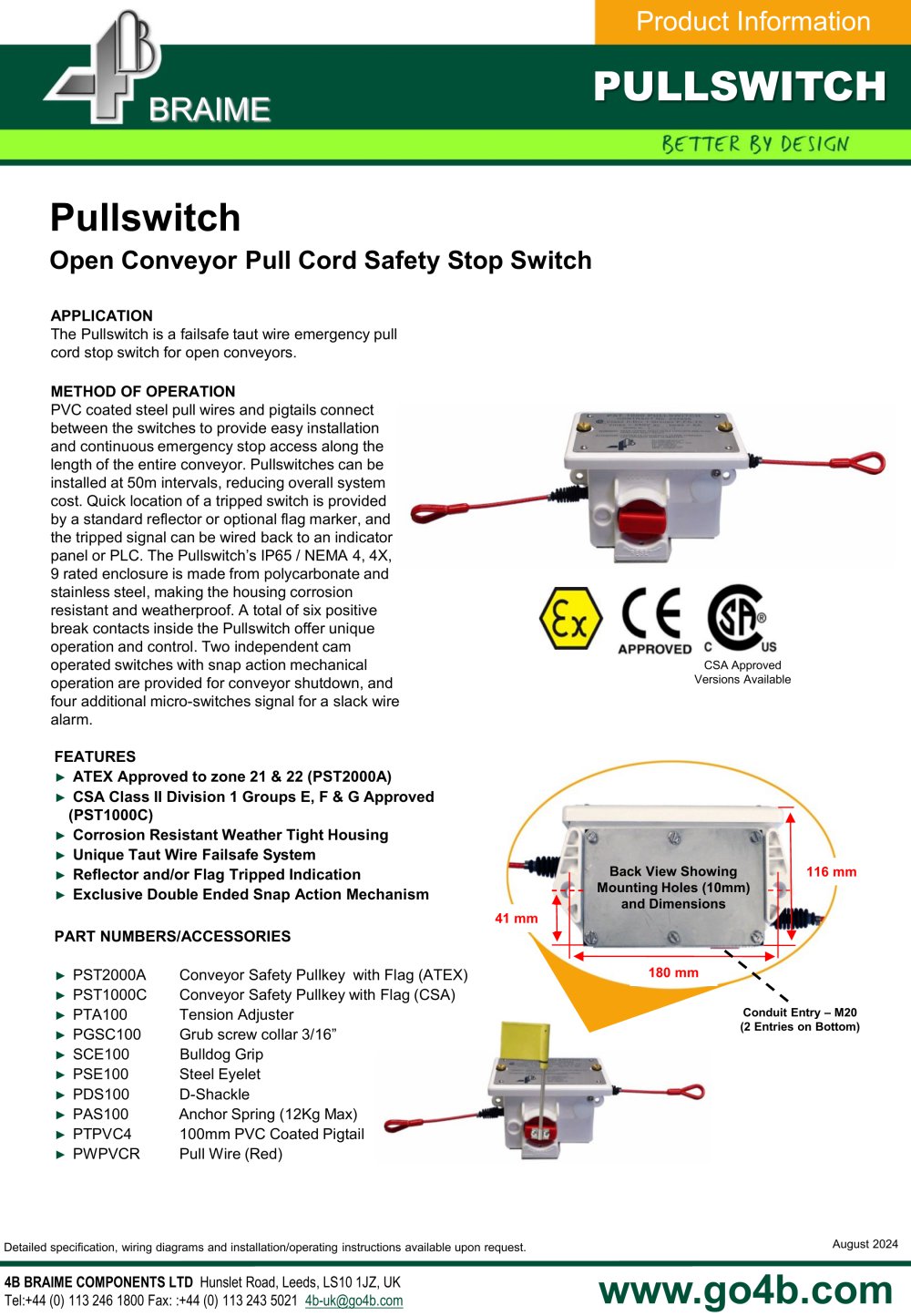

| | | Product Information | | |
| | | |
| | | PULLSWITCH | | |
| | | BRAIME | | |
| | | |
| | | |
| | | | | |
| | | |
| | | PULLSWITCH | | |
| | | |
| | | Approved for dust-explosive environments ATEX Zones 20, 21 & 22 & conforms with norm EN 620 | | |
| | | |
| | | APPLICATION The PST2000A Pullswitch is a reliable "Taut Wire" failsafe emergency stop system for installation along the length of a conveyor. Pullswitches can be installed at intervals of up to 100m, reducing the overall system cost. PVC coated steel pullwire, available in five different colours, connects between the switches to provide continuous emergency stop access along the length of the conveyor. Quick location of a tripped switch is provided by a flag/reflector combination and a signal can also be wired back to an indicator panel or PLC. The Pullswitch housing is made from polycarbonate and stainless steel providing corrosion-resistant, robust and weather proof protection. A total of five independent changeover contacts inside the Pullswitch offer unique operation and control. Two independent cam operated switches with snap action mechanical operations are provided for conveyor shutdown. A third switch acts as an auxilary tripped switch location signal and two additional microswitches signal for a slack wire alarm. FEATURES | | |
| | | ATEX Approved Ex II 1D T85°C - IP 65 | | |
| | | |
| | | |
| | | CSA Approved Versions Available | | |
| | | Corrosion Resistant Weather Tight Housing Unique Taut Wire Failsafe System Reflector/Flag and Flag tripped Indication Double Ended Snap Action Mechanism ATEX-Approved according to norm EN 50281-1-1 Ex II 1D T85°C IP65 - ZONE 20 | | |
| | | |
| | | |
| | | ACCESSORIES | | |
| | | |
| | | | | | | | | | | | 1 | Ending | 5 | Cable c lip | | | | 2 | Collar/clip | 6 | Pigtail | | | | 3 | "D" Shackle | 7 | Tensioner | | | | 4 | Eyelet for pullwire | | | | | | | | | | | | | |
| | | |
| | | Detailed specifications, wiring diagrams and installation / !• -I ui l Please refer to instruction manual for correct installation . operating instructions available upon request. ' i"s"uc'io" manual '°' co"ec' insiallai'o". Information subject to change or correction. May 2007. | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
