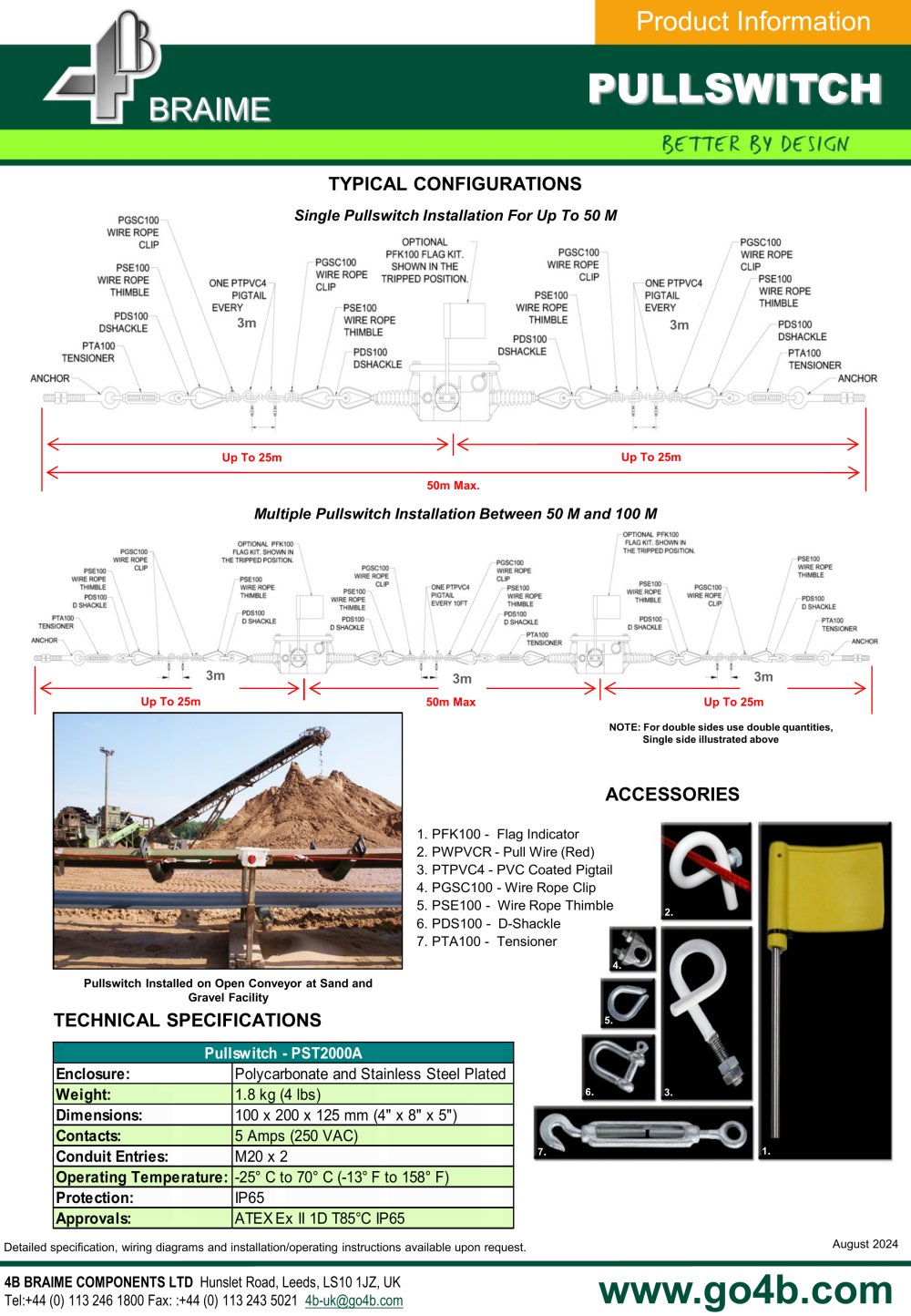

| | | Product Information | | |
| | | |
| | | PULLSWITCH | | |
| | | BRAIME | | |
| | | |
| | | |
| | | | | | | | | | TECHNICAL SPECIFICATIONS | | | | Type | PST2000A | | | | Contacts | 250V/5A | | | | Enclosure | Polycarbonate and Stainless Steel | | | | Dimensions | 100X200X125mm | | | | Protection | IP 65 | | | | Entry conduits | 2 X M20 | | | | IK | IK 07 | | | | Mechanism | | | | | | | | | | |
| | | |
| | | TYPICAL APPLICATION | | |
| | | |
| | | -100 M Max- | | |
| | | |
| | | M. | | |
| | | |
| | | ■ 100 M Max- | | |
| | | |
| | | © Î PST2000A | | |
| | | Î | | |
| | | s s \ | | |
| | | SCE100 | | |
| | | |
| | | |
| | | PTA100 PGSC100 PTPVC4 PSE100 PWPVCR PDS100 tous les 3 m. | | PAS100 | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | PST2000A | Pullswitch | | | | PTA100 | Tensioner | | | | PGSC100 | Collar/Clip for cable | | | | PTPVC4 | PVC coated pigtail 82,5/10mm Dia | | | | SCE100 | "STIRRUP" cable clip | | | | PSE100 | Eyelet for Pullwire | | | | PWPVCR | Red pullwire 3/16" | | | | PDS100 | "D" Shackle | | | | PAS100 | Anchor Spring 12 KG (optional) | | | | | | | | | |
| | | |
| | | CONTACT ARRANGEMENT | | |
| | | |
| | | Tension Left | | |
| | | Tension Contact Contact right signal Stop | | |
| | | Contact Stop | | |
| | | |
| | | |
| | | |
| | | 1 2 3 4 567 | | |
| | | 8 9 10 | | |
| | | 11 12 | | |
| | | |
| | | Please refer to instruction manual for correct installation . Information subject to change or correction. May 2007. | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
