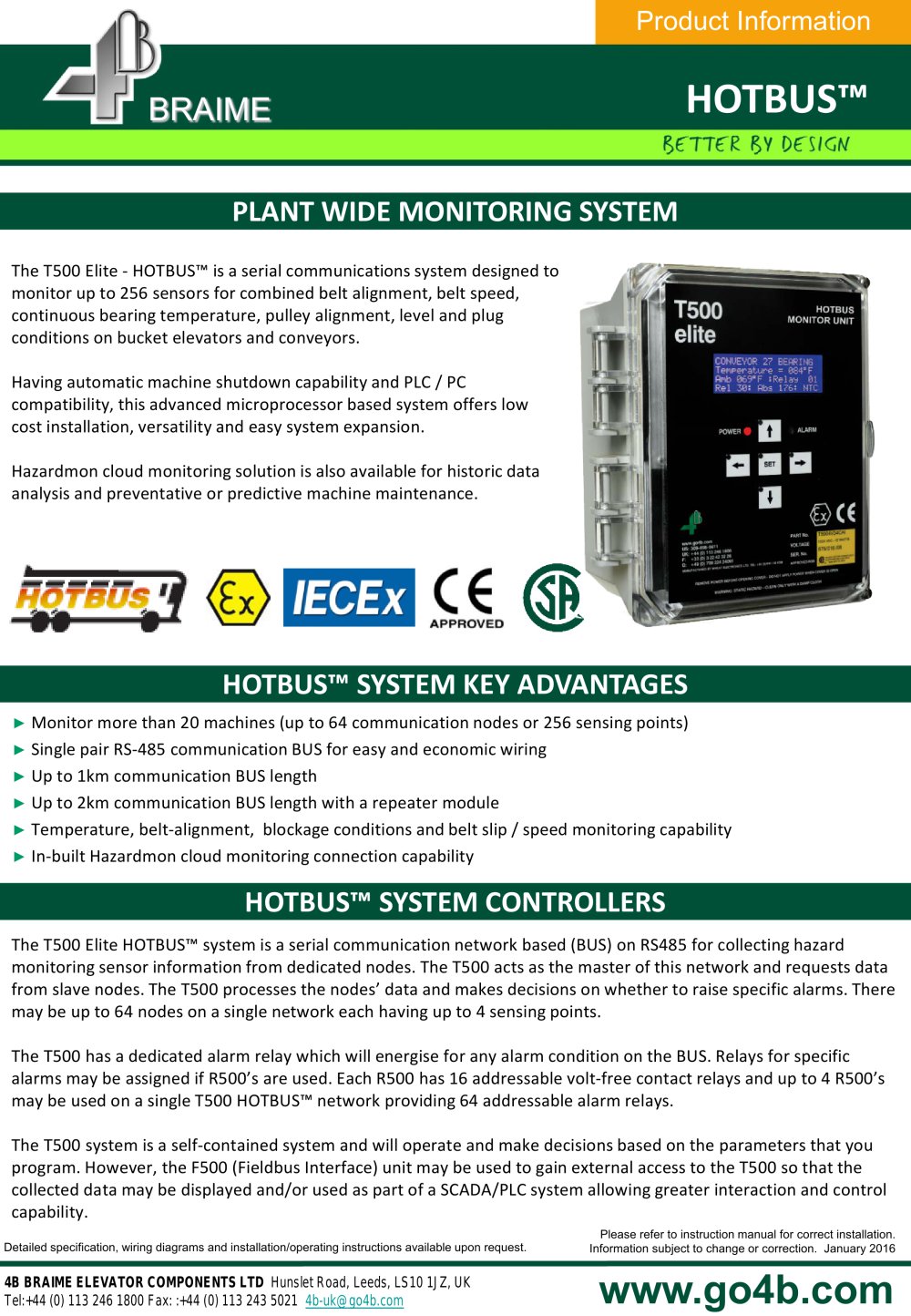

| | | Product Information HOTBUS | | |
| | | |
| | | | | |
| | | |
| | | APPLICATION The T500 Elite monitors up to 256 sensors, bearing temperature, misalignment, speed sensors, and others. It consists of a field bus (max. 1Km) to which the HOTBOX modules are connected. A maximum of 64 HOTBOXES can be connected to the field bus. FEATURES .■ Reduced wiring: up to 256 sensors with one 4 conductor cable-2 for communication & 2 for supply .- High Speed: 4 seconds scan time with 256 sensors installed .■ Universal system: works with many types of sensors User friendly: enter your own sensor names - Fixed temperature for alarm or machine shutdown - Variable temperature - taking account of ambiant temperature for each Hotbox | | |
| | | ATEX zones 21 & 22 | | |
| | | |
| | | CLASS 2 div. 2 groups E,F,G | | |
| | | |
| | | |
| | | .■ T500 module is ATEX-approved for zones 21& 22; Hotbox Nodes are ATEX-approved for zone 21; sensors are ATEX approved for zones 20 & 21 | | |
| | | |
| | | .■ The HotBus system can be connected to logging & trending software to continuously monitor bearing temperatures for preventative maintenance and historical data analysis | | |
| | | |
| | | Detailed specification, wiring diagrams and installation/operating instructions available imm ediately upo n request . | | |
| | | |
| | | 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com | | |
| | | www.go4b.com | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | |
