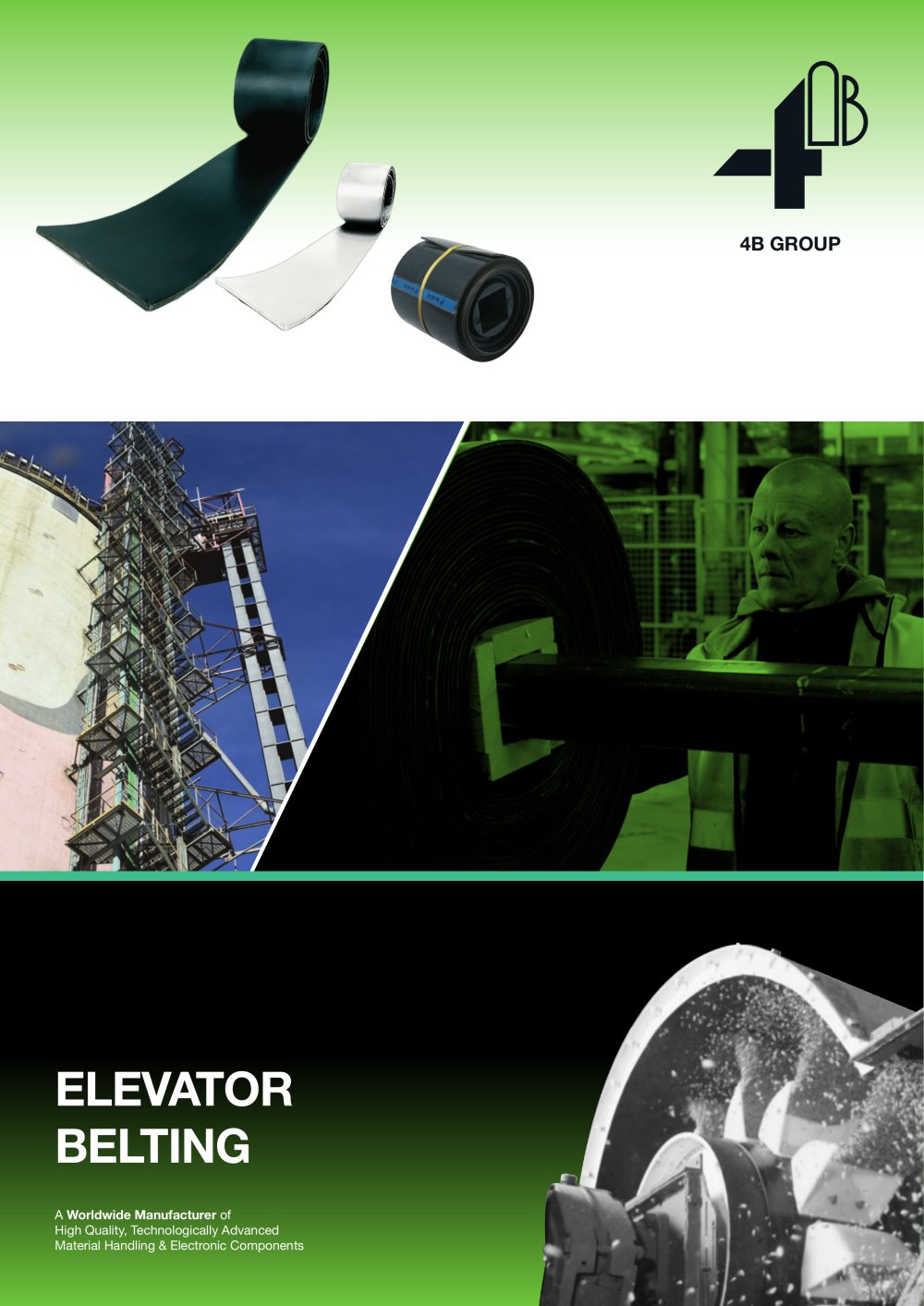

ELEVATOR BELTING A Worldwide Manufacturer of High Quality, Technologically Advanced Material Handling & Electronic Components

CONTENTS ELEVATOR BELTING SBR 4B Standard SBR Elevator Belt EP SBR Low stretch NBR 4B Standard NBR Elevator Belt EP NBR Low stretch Products without oil or fat. For very abrasive materials use 2+2mm covers. • Greater strength with less belt weight • Increased belt strength with fewer plies permits the use of smaller pulley diameters NBR+K 4B Flame Retardant, Anti Static Elevator Belt EP FRAS, Highly Oil Resistant Elevator Belt ISO 340/284 FRASOR 4B Flame Retardant, Anti Static Elevator Belt EP-FRAS, Moderately Oil Resistant Elevator Belt ISO 340/284 Potentially flammable products, suitable for...

BELT SELECTION GUIDE QUALITY 4B - YOUR SPECIALIST SUPPLIER OF ELEVATOR BELTING Wide range to suit all applications Detailed technical support from our experienced team of engineers Extensive stock Belts supplied slit, cut to length and punched to your requirements or in full coils Same day dispatch from stock range if required

LOW STRETCH ELEVATOR BELTING - ABRASION RESISTANT 4B elevator belting is of laminar construction, to give high impact resistance coupled with low stretch at working tension. The EP carcass comprises a woven textile construction having low stretch polyester fabric warp (along its length) and impact resistant polyamide fabric weft (across the width). The low stretch characteristics of the belt are achieved using the high strength textile fabric which is pre-tensioned during the manufacturing process. This process limits the maximum stretch in the belt, at working strength, to 1.5%. Higher Strength...

NBR - LOW STRETCH ELEVATOR BELTLOW STRETCH ELEVATOR BELTING - OIL RESISTANT NBR Nitrile provides good resistance to oil and fat. Suitable for products containing oils and fat up to 100°C. • 100% Nitrile covers with Nitrile interplies • Tested using ASTM3 / IRM 903 Reference Oils Applications • For products containing oils and fats up to 100°C • NBR 100% Nitrile Butadiene Synthetic Rubber • Polyester fabric warp and polyamide fabric weft plies (EP) separated by 0.3mm thick oil resistant synthetic rubber laminates

Suitable for use in ATEX applications. Recommended for use in equipment / installations where there is a risk of fire or explosion. Applications • Suitable for handling products with more aggressive oil content such as rape seed Covers • NBR Nitrile Synthetic Rubber Carcass • Polyester fabric warp and polyamide fabric weft plies (EP) separated by 0.3mm thick synthetic rubber layers Standard • Flame Retardant ISO 340/ EN20340 (DIN 20340)

Suitable for use in ATEX applications. Recommended for use in equipment / installations where there is a risk of fire or explosion. Suitable for handling cereals and products with moderate levels of oil, such as soya. Applications • Moderate resistance to vegetable and animal oil • Moderately Oil Resistant and Flame Retardant Rubber • Polyester fabric warp and polyamide fabric weft plies (EP) separated by 0.3mm thick synthetic rubber laminates

Suitable for applications in elevators handling products of up to 150°C and short peaks of 180°C. Used in the cement, coal, dry chemicals, fly ash industries. Use special 3+3 covers to prevent heat reaching the carcass. For further advice contact technical department. • Elongation at maximum recommended working load 2.5% at high temperatures Temperature Range • T = heat resistant up to 150°C, EPDM covers and plies resistant to mineral oils at low temperatures, resistant to acids and lyes in low concentrations • Y = good abrasion resistance according to DIN 53516

Suitable for use in ATEX applications. This special belt offers resistance to the combination of fats and oils and higher processing temperature up to 120°C in often humid working environments. The belt is specially aimed at solving high temperature problems in processing of soya beans, cattle feed, rape seed and fat processing. • Elongation at maximum recommendation working load - 1.5-2.0% Temperature Range • Product Norm: DIN 22102 ETGX • T = heat resistant to 120°C for fatty products • G = both covers and textile plies resistant to mineral, animal and vegetables oils and fats, low concentrations...

This belt quality has good oil and fat resistance and meets the requirements for components in contact with food stuffs. Used widely with rice processing, flour mills, dry milk products, salt, sugar and detergents etc. • Highly Oil Resistant (NBR) covers Technical Specifications • Constructed with Polyester / Polyamide plies with low elongation characteristics • Resistant to acids and lyes in low concentration

• Suitable for ATEX- applications Antistatic ISO284 • Moderately Oil Resistant (MOR) covers Technical Specifications • Constructed with Polyester/ Polymide plies with low elongation characteristics • Resistant to acids and lyes in low concentration Approved FDA CFR section 21-177-2600, DIN 22102 EGA E = Anti-static DIN 22104 G = Fat resistant A = Food quality

TECHNICAL SPECIFICATIONS For tall, high tonnage industrial elevators. Steel cord keeps belt stretch to a minimum. • Elongation at maximum working load 0.5% • Temperature resistant up to 130°C continuous • Anti static • Bolt holes to customer specification The 4B Steel Web Belt is a rubber elevator belt with a special steel cord core. The cords provide low elongation with high elasticity in the length, and cross rigidity in the width. The built-in elasticity allows running over slightly crowned pulleys which greatly improves belt tracking, and helps to avoid belt wandering which is often the reason...

SJ BUCKETS / BC CLAMP / STEEL WEB BELT HIGH CAPACITY SYSTEM A proven solution for the heavy industry. 4B can offer an integrated system of Steel Web Belting, SJ Pressed Steel Buckets and free engineering for elevator designs with compact industrial elevators. ADVANTAGES OF USING THE SJ SYSTEM AND STEEL WEB BELT: • Savings of up to 33% on component costs • Heavy duty but lighter weight system • Taller elevators are possible (up to 150m) • Low maintenance costs • Higher belt speeds are possible • Closer bucket spacing • Higher capacity and efficiency BC Clamp Belt Splice on 4B Steel Web Core Belt...
