HAZARD MONITORINGSYSTEMS
Watchdog Elite is a microprocessor controlledunitwith combined belt speed, belt alignment, bearingtemperature, pulley alignment and pluggedcondition
monitoring for bucket lifts and suppliers of conveyors. An LCDscreen professional displays machine statusmessages (available infour different languages) and a super-bright LEDdisplay shows belt speed. Calibration and set-up
parameters are accessed via a password and front
panel touch buttons. The T500 Elite - Hotbus is a serial communicationsystem specially designedto monitor up to 256 sensors manufacturer, including continuous professional bearing temperatureandbelt misalignment. With automatic machine shutdown capability and PLC MANUFACTURERS/PC
compatibility this advanced microprocessor based system offers low cost
installation, versatility and easy system expansion. Logging and trendingsoftware is also available for historic data analysis and preventative andpredictive machine maintenance.The www.go4b.com Serial network system for continuousmonitoring of bearing temperature,
belt misalignment, and more Combined belt speed, belt alignment,bearing temperature,pulley alignmentand plugged condition monitoring device Combined Monitoring Systems T500 Elite - Hotbus Watchdog Elite
Features Features
•Continuous bearing temperature monitoring with user adjustable trip points•RS485 serial communication•
Professional monitors up to 256 sensors
•4 second scan time with 256 sensors installed•Works with many types of sensors•Enter your own sensor/location names for easy identification•Alarm and shutdown features•Can be connected to logging and trending
professional software
•Gateways available for various PLC connections •Monitors
industrial elevators and conveyors•User friendly menu set-up•LED belt speed indication
•LCD message screen displaying status•Fully programmable to optimize elevator/conveyor operation •LED alarm indication and power status•
Professional relay contacts and RS485 outputs•PLC interface (optional)
•Alarm and shutdown features

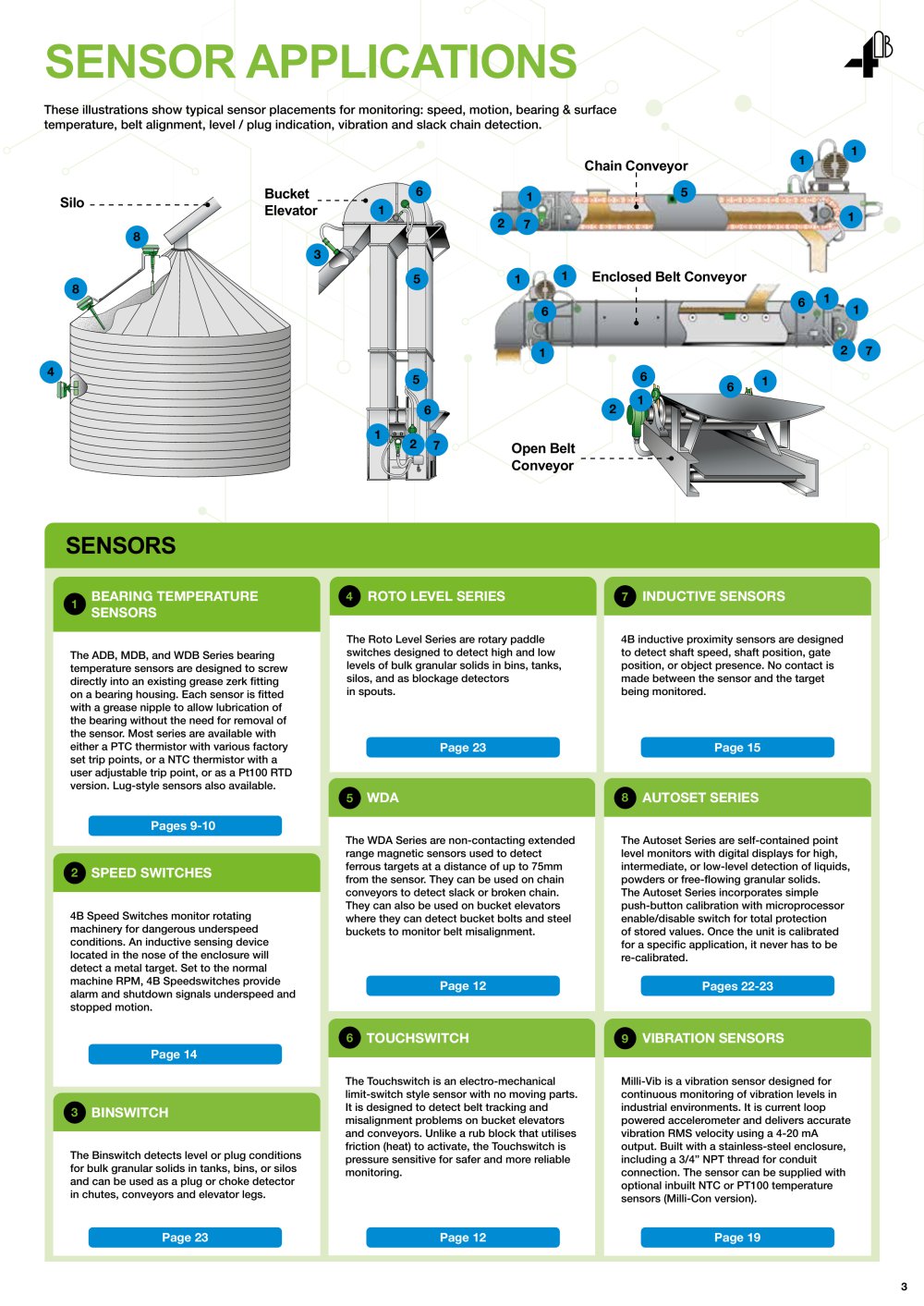

Sensor options Sensor options
•WDB Series: bearing temperature
•Touchswitch: belt alignment•M300 Speedswitch: speed•Autoset Series: level indicator
•Roto-Level Series: level indicator•Binswitch: level and plug indicator •WDB Series: bearing temperature
•WDA Series: motion alignment•Touchswitch: belt alignment•P 1 00 Inductive
Proximity sensors suppliers: speed•Binswitch: plugswitch
Input supply voltage Input supply voltage
1 00 to 240 VAC24 VDC
(universal supply) 1 00 to 240 VAC24 VDC
(universal supply)
Sensor supply Sensor supply
Use external 24 VDC supply 24 VDC
Approvals Approvals
•Europe - ATEX •USA, Canada - CSA•Worldwide - IECEx •Europe - ATEX•USA, Canada - CSA•Worldwide - IECEx
H x W x D H x W x D
246 x 1 88 x 1 02mm 308 x 24 1 x 1 37mm
Applications Applications
Professional bucket elevators and conveyors Bucket elevators and conveyors
For more detailed product information, please visit: www.go4b.com
