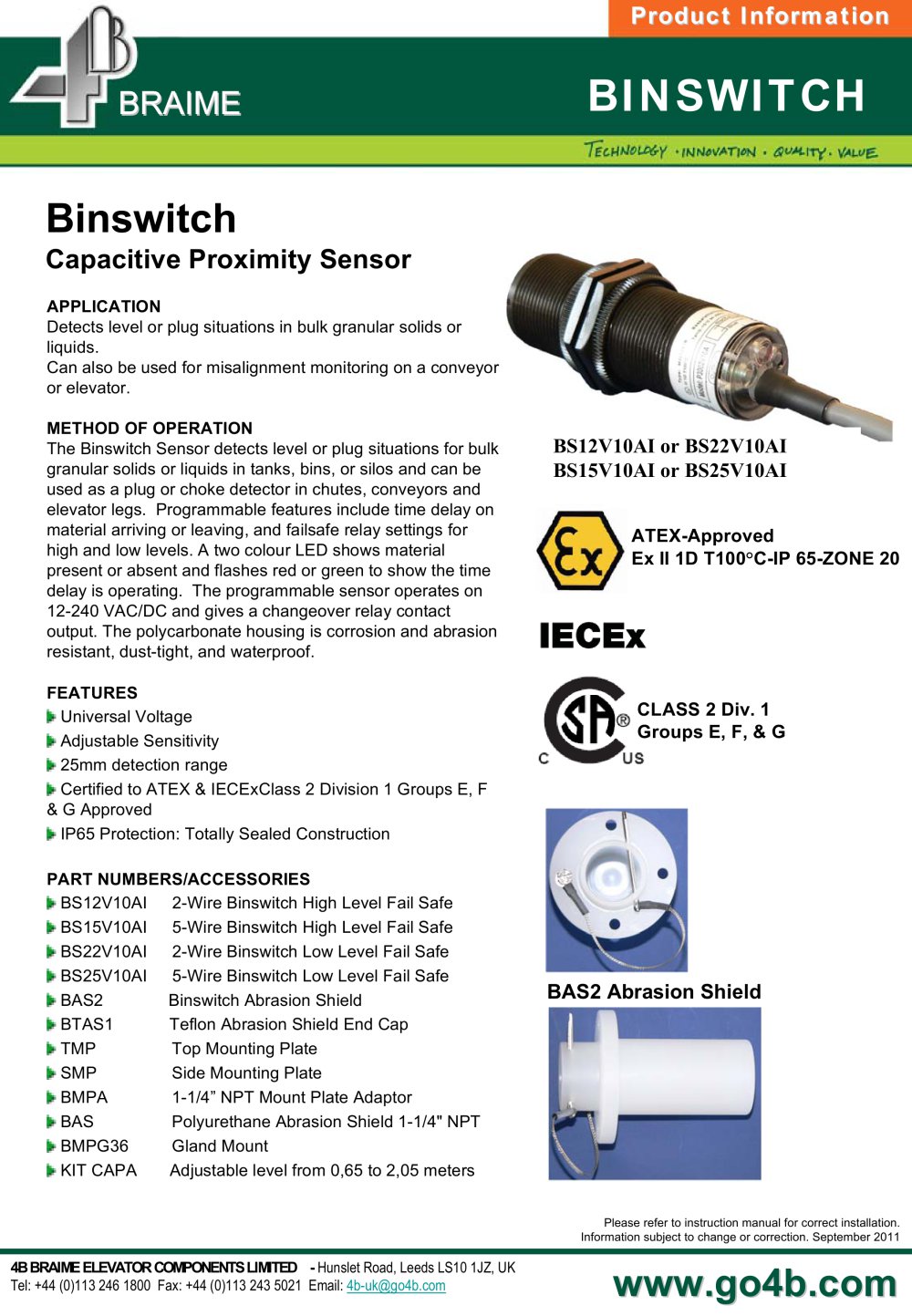

4B Bin Switch - Capacitance Point Level Switch - 31528 BRAIME BINSWITCH Binswitch

Capacitive ProximitySensor

APPLICATION METHOD OF OPERATION Detects level or plug situations in bulk granular solids or liquids. Can also be used for misalignment monitoring on a conveyor or elevator. The BinswitchSensor detects level or plug situations for bulk granular solids or liquids in tanks, bins, or silos and can be used as a plug or choke detector in chutes, conveyors and elevator legs. Programmable features include time delay on material arriving or leaving, and failsafe relay settings for high and low levels. A two color LED shows material present or absent and flashes red or green to show the time delay is operating. The programmable sensor operates on 12-240 VAC/DC and gives a changeover relay contact output. The polycarbonate housing is corrosion and abrasion resistant, dust-tight, and waterproof. FEATURES

BS12V10AI or BS22V10AIBS15V10AI or BS25V10AI

ATEX-ApprovedEx II 1D T100 ° C-IP 65-ZONE 20

Universal Voltage

CLASS 2 Div. 1 Groups E, F, & G

Adjustable Sensitivity 25mm detectionrange Certified to ATEX & IECExClass2 Division 1 Groups E, F & G Approved IP67 Protection: Totally Sealed Construction PART NUMBERS/ACCESSORIES BS12V10AI2-Wire BinswitchHigh Level Fail Safe BS15V10AI5-Wire BinswitchHigh Level Fail Safe BS22V10AI 2-Wire BinswitchLow Level Fail Safe BS25V10AI 5-Wire BinswitchLow Level Fail Safe BAS2 BinswitchAbrasion Shield

BAS2 Abrasion Shield

BTAS1 Teflon Abrasion Shield End Cap TMP Top Mounting Plate SMPSide Mounting Plate BMPA1-1/4”NPT Mount Plate Adaptor BASPolyurethane Abrasion Shield 1-1/4" NPT BMPG36 Gland Mount KIT CAPAAdjustablelevelfrom0,65 to 2,05 meters
Please refer to instruction manual for correct installation.Information subject to change or correction. June 2006. 4B BRAIME ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
