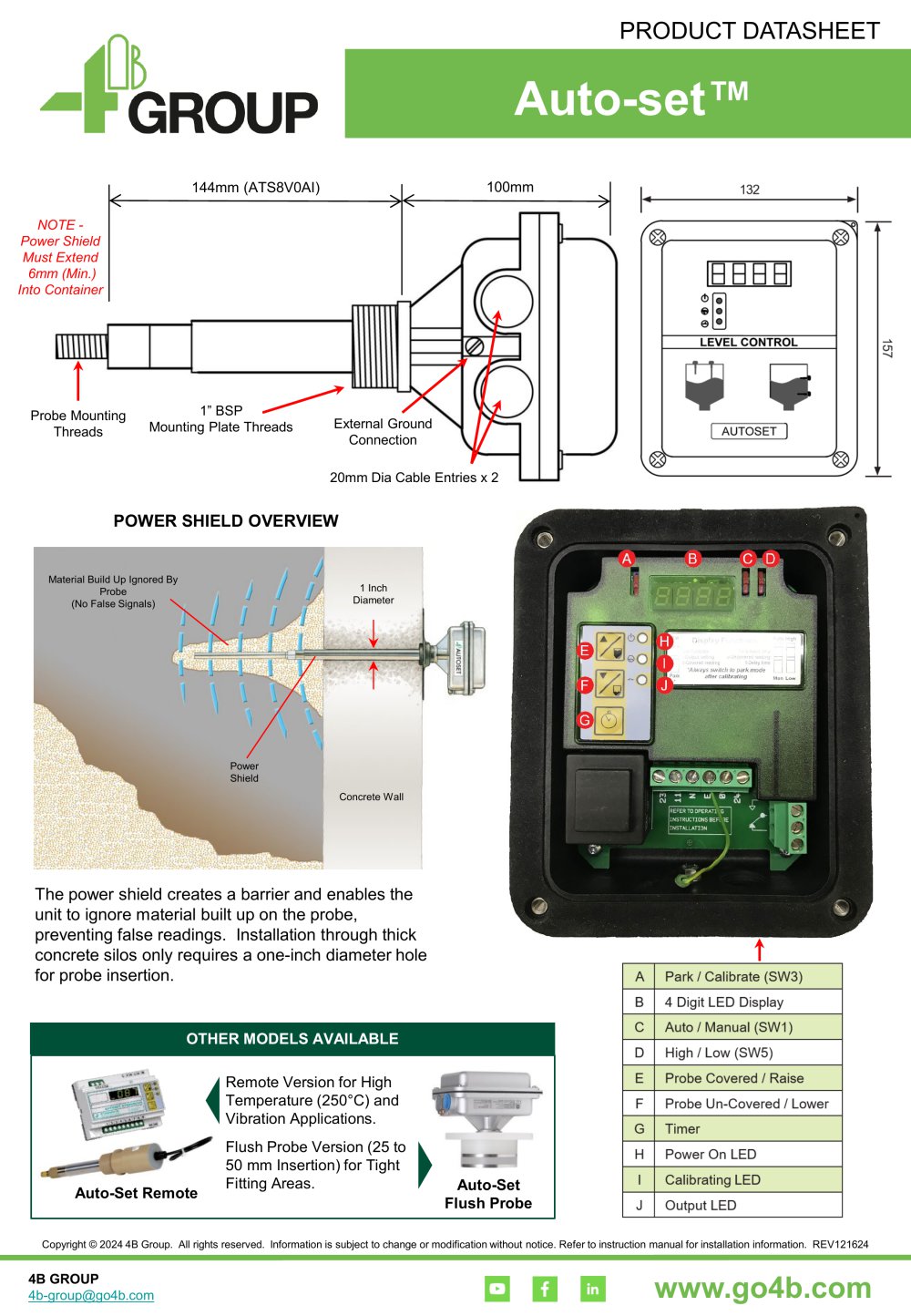

BRAIME AUTO-SET MK4

Probes range from100mm to 1880 mm, withcableup to 10 metersand more

Approvals Ex II 1D T100°C Supply 110 / 230 V AC 50/60 Hz or 24 Vdc Output 2,5 VA Enclosure Polyamide 66 IK 08 Protection IP 65 Mounting par pas 1'' BSP parallèle Switch high/low preferred security position ( high or low level ) Industrial fuse 5 Amps Cable entryOperating temperature -20°C to +50°C Humidity 90%RH Output S.P.C.O contacts rated at 2,5A 240 V non-inductive Time delay 0-128 seconds variable (to prevent wrong signals in case of dirt build-upmin. 1mm² - max. 4 mm²

Auto-set FPcompact versionAuto-set extendedversion

monitors throughwallsup to 300 mm thick

Please refer to instruction manual for correct installation . Information subject to change or correction. July 2007 . 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021
