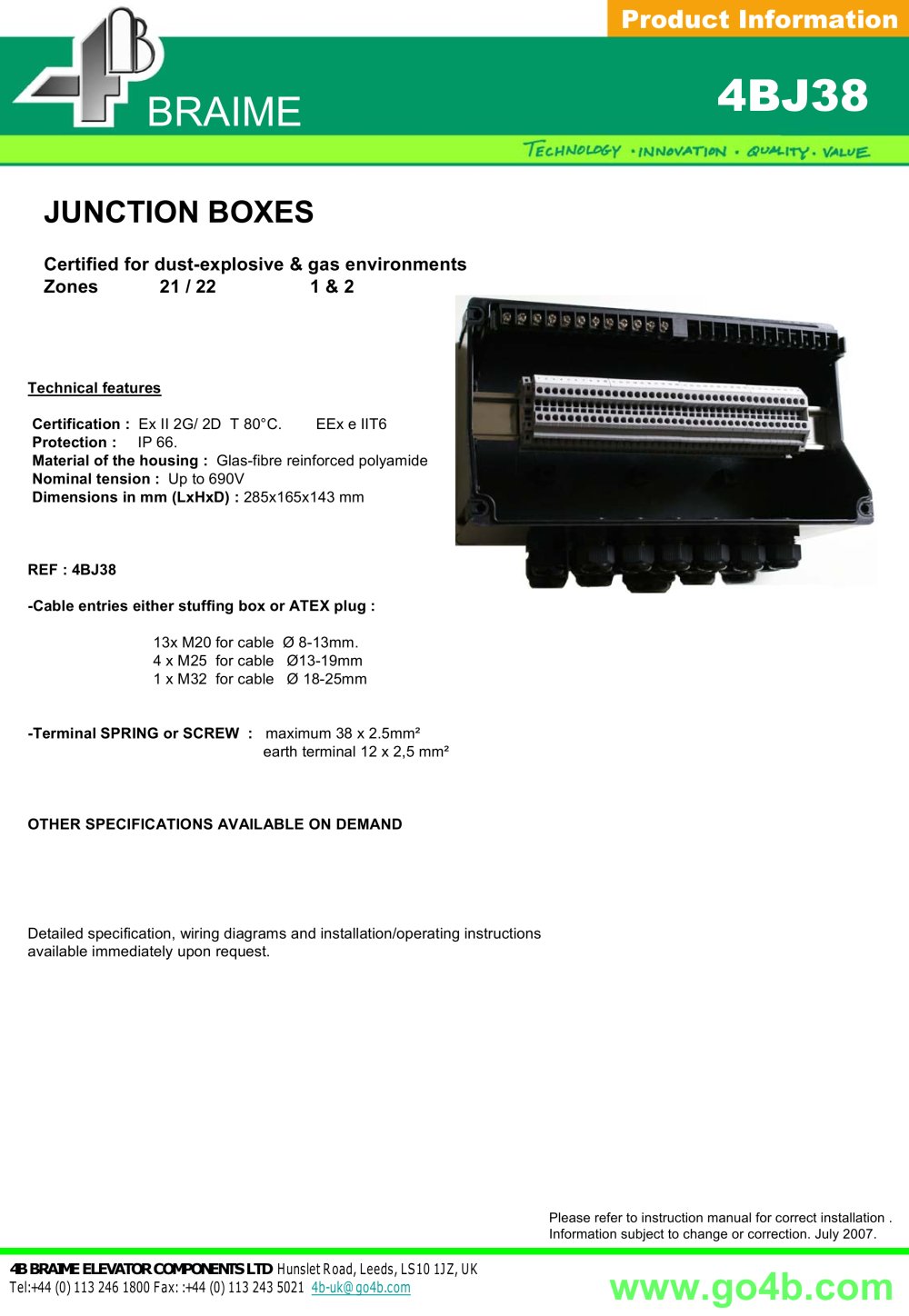

BRAIME 4BJ38

JUNCTION BOXES

Certifiedfor dust-explosive & gasenvironmentsZones21 /221&2

Technicalfeatures Certification: Ex II 2G/ 2DT 80°C. EExe IIT6 Protection: IP 66. Materialof the housing: Glas-fibre reinforcedpolyamide Nominal tension: Up to 690V Dimensionsin mm (LxHxD): 285x165x143 mm REF: 4BJ38-Cableentries eitherstuffingboxorATEX plug: 13x M20 for cableØ8-13mm.4 x M25 for cableØ13-19mm1 x M32 for cableØ18-25mm -Terminal SPRING or SCREW: maximum 38 x 2.5mm²earthterminal12 x 2,5 mm² OTHER SPECIFICATIONSAVAILABLE ON DEMAND Detailed specification,wiring diagrams and installation/operating instructionsavailable immediately upon request.
Please refer to instruction manual for correct installation .Information subject to change or correction. July 2007. 4B BRAIME INDUSTRIAL ELEVATOR COMPONENTS LTD HunsletRoad, Leeds, LS10 1JZ, UKTel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com
