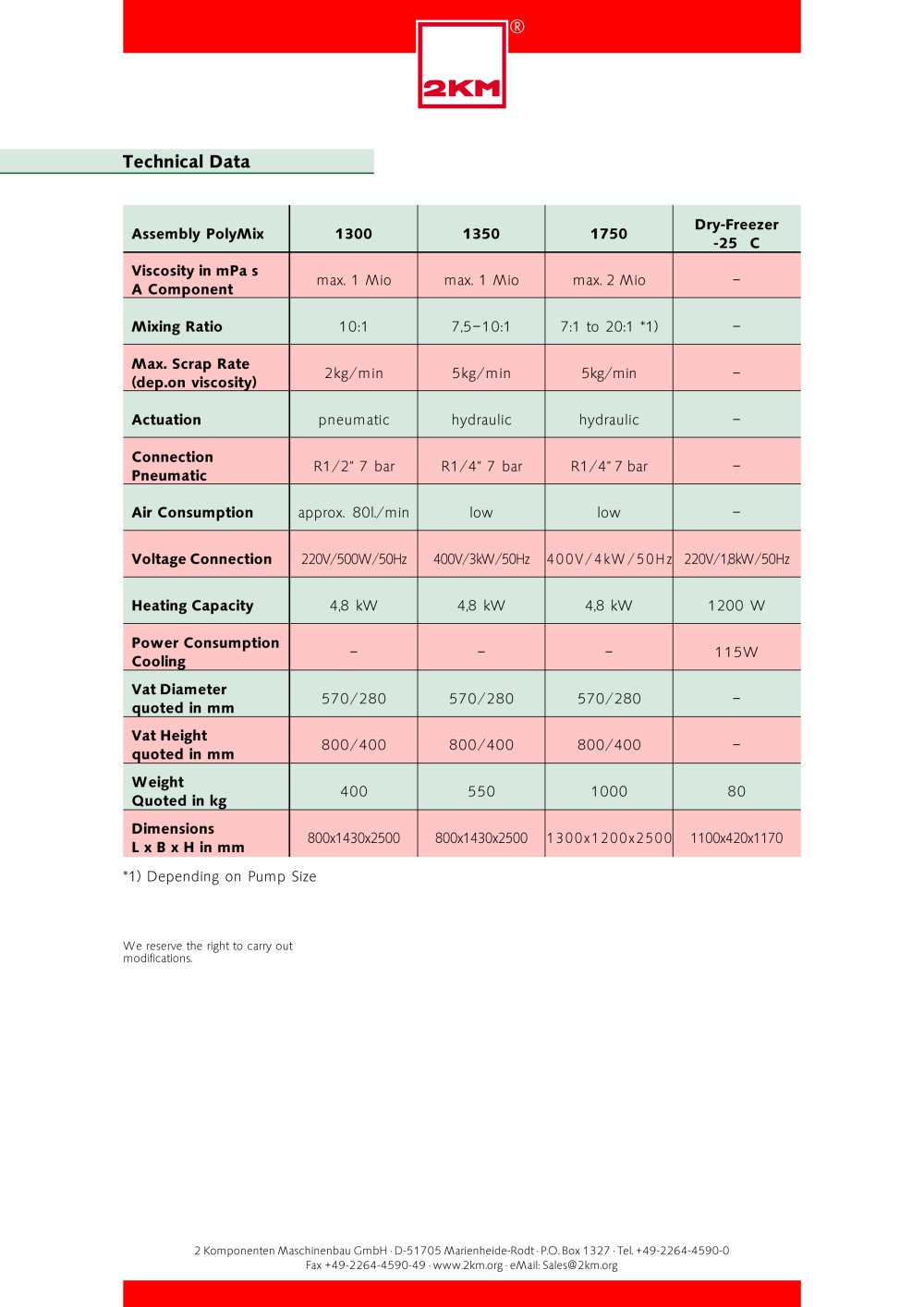

| | | Technical Data | | |
| | | |
| | | | | | | | | | | | | Assembly PolyMix | 1300 | 1350 | 1750 | Dry-Freezer -25 C | | | | Viscosity in mPa s A Component | max. 1 Mio | max. 1 Mio | max. 2 Mio | - | | | | Mixing Ratio | 10:1 | 7,5-10:1 | 7:1 to 20:1 *1) | - | | | | Max. Scrap Rate (dep.on viscosity) | 2kg/min | 5kg/min | 5kg/min | - | | | | Actuation | pneumatic | hydraulic | hydraulic | - | | | | Connection Pneumatic | R1/2" 7 bar | R1/4" 7 bar | R1/4" 7 bar | - | | | | Air Consumption | approx. 80l./min | low | low | - | | | | Voltage Connection | 220V/500W/50Hz | 400V/3kW/50Hz | 400V/4kW/50Hz | 220V/1,8kW/50Hz | | | | Heating Capacity | 4,8 kW | 4,8 kW | 4,8 kW | 1200 W | | | | Power Consumption Cooling | - | - | - | 115W | | | | Vat Diameter quoted in mm | 570/280 | 570/280 | 570/280 | - | | | | Vat Height quoted in mm | 800/400 | 800/400 | 800/400 | - | | | | Weight Quoted in kg | 400 | 550 | 1000 | 80 | | | | Dimensions L x B x H in mm | 800x1430x2500 | 800x1430x2500 | 1300x1200x2500 | 1100x420x1170 | | | | | | | | | | | | |
| | | |
| | | *1) Depending on Pump Size | | |
| | | |
| | | We resede the right to carry out modifications. | | |
| | | |
| | | 2 Komponenten Maschinenbau GmbH ■ D-51705 Marienheide-Rodt ■ P.O. Box 1327 ■ Tel. +49-2264-4590-0 Fax +49-2264-4590-49 ■ www.2km.org ■ eMail: Sales@2km.org | | |
| | | |
| | | | | | | | | | | |
